fix(ui): let Agent Browser screenshots open at original size - #444

Merged
Qiyuanqiii merged 2 commits into
Qiyuanqiii/docs-current-statefrom
Qiyuanqiii/browser-screenshot-viewer
Oct 23, 2026
Merged

Qiyuanqiii merged 2 commits into
Qiyuanqiii/docs-current-statefrom
Qiyuanqiii/browser-screenshot-viewer

Conversation

@Qiyuanqiii

@Qiyuanqiii Qiyuanqiii commented Oct 21, 2026 •

Copy link
Copy Markdown
Member

Summary

Agent Browser screenshots were limited to a 320px-high thumbnail, making page text hard to inspect. Click View original to use the existing image viewer: fit or 100% size, zoom, copy PNG and download the original. The viewer uses the already verified bytes and closes when the screenshot, browser session or Run changes; Escape returns focus to the thumbnail.

Built on #432 (Qiyuanqiii/docs-current-state); this PR changes only the screenshot UI, its tests and visual evidence. It adds no browser permissions or API routes.

Real before/after screenshots

The same screenshot from the production browser tools and Go API, in the baseline and changed production frontend. Captured in Edge on Windows. Verification notes.

Before After

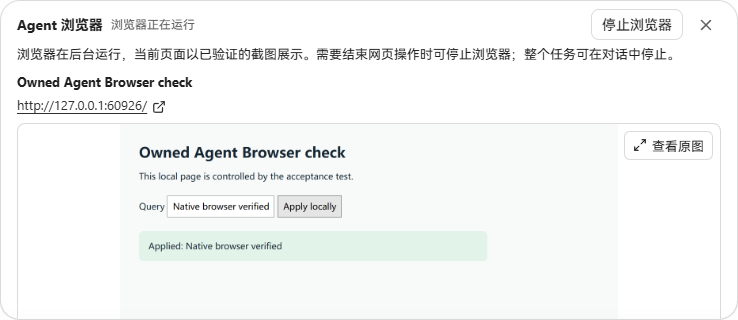

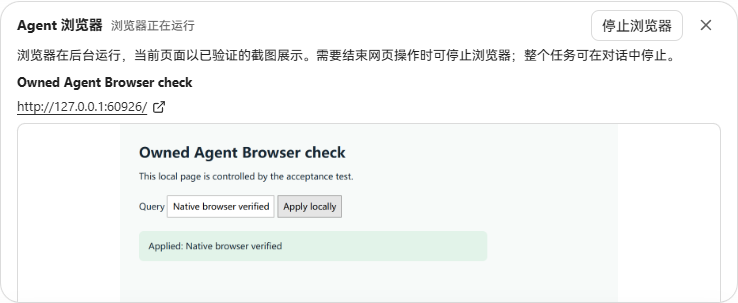

Thumbnail only View original

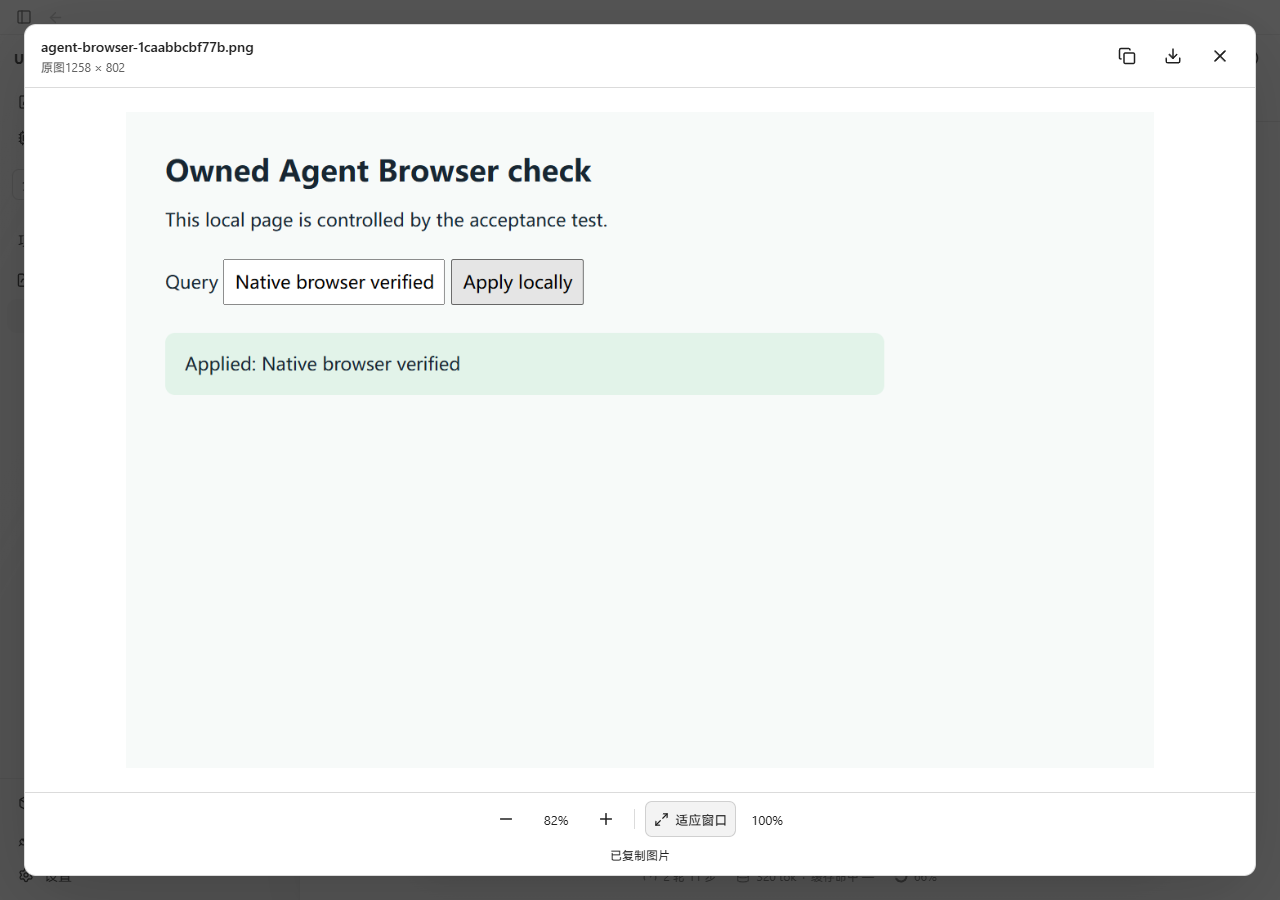

Original viewer with copy and download

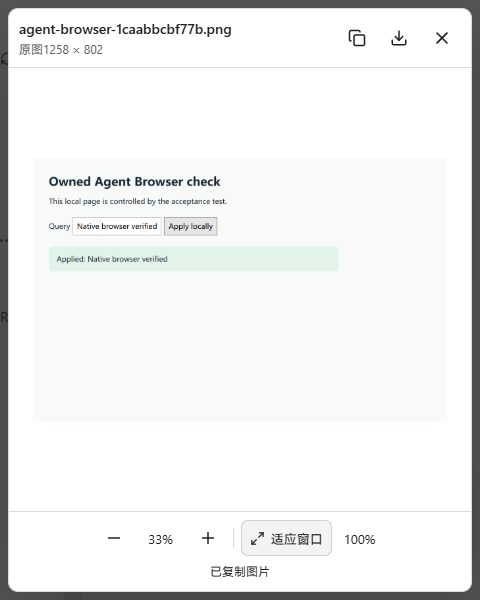

480 × 600 window

Narrow original viewer

Validation

  • Agent Browser component: 21 tests passed; existing image-viewer suite: 8 tests passed.
  • npm run build — TypeScript and production Vite build.
  • Actual browser: open, 100%, fit, clipboard PNG, original download, Escape focus return and 480 × 600 layout.
  • Downloaded bytes match the server SHA-256; copied image retains 1258 × 802 dimensions.
  • git diff --check.

CI will run the repository-wide checks. Local verification is scoped to the frontend change.

Surface governance

  • No Surface is added, promoted, downgraded, deprecated, or removed.
  • Registry item(s): N/A — no Surface change.

Audit

  • No credentials or local runtime data are included; screenshots use the owned journey test page.
  • Existing verified-image loading and browser authority boundaries are preserved.
  • Behavior and verification are recorded in the acceptance README.

Screenshot download recovery

A failed first screenshot request now has a Reload screenshot action. It retries the same verified image without issuing browser controls. A new regression failed before the fix; a real Edge run with one interrupted image request confirmed recovery and reopening the original viewer.

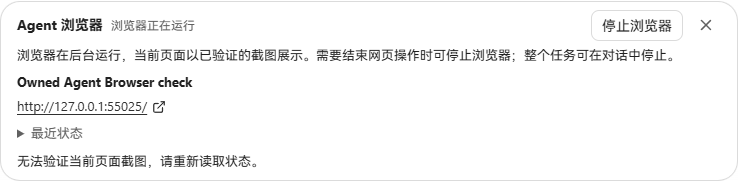

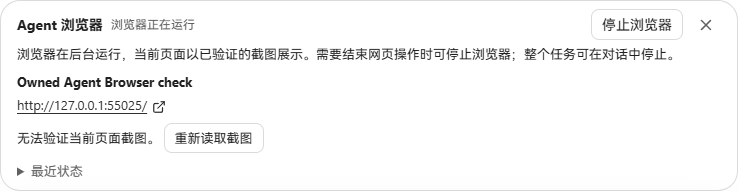

Failed request before Failed request after
No retry action Retry action available

Recovered original screenshot

最新提交 ba0eafa631bb98f79cde0f9b41fc663bb3191f08 的 完整 CI 已通过:23 项成功,0 失败、0 等待。

@Qiyuanqiii
Qiyuanqiii merged commit fe4561d into Qiyuanqiii/docs-current-state Oct 23, 2026
23 checks passed
@Qiyuanqiii
Qiyuanqiii deleted the Qiyuanqiii/browser-screenshot-viewer branch October 24, 2026 00:47
