Phase 2 — Hierarchy-aware interactions in GitHub Projects

Status: shipped and verified end-to-end against CodigoSinSiesta/1 (real data, real Orca dev build, real GitHub mutations). One correction to the RFC's assumption surfaced during the spike — see below.

Summary

Adds issue-level hierarchy navigation and writes to the work-item drawer's new "Sub-issues" section (GitHubItemDialog.tsx, issue pages only): shows the parent (if any), the direct sub-issues with a recursive roll-up progress summary, and lets the user add, remove, and reorder sub-issues without leaving Orca.

This is deliberately scoped to the drawer, not the table. Phase 1b's flat Sub-issues progress / Parent issue table columns (ProjectCell.tsx) are untouched — this phase adds navigation and writes on top of that read-only foundation. Nested/indented table rows are explicitly out of scope — that's Phase 3, gated on its own design review per the RFC.

RFC correction found during the spike

The RFC (docs/reference/2026-07-14-github-projects-hierarchy-traceability-design.md §8, Phase 2) assumed writes would go through REST (project-view/mutations.ts pattern), since its schema excerpt of Issue didn't show mutation fields.

A live spike found otherwise: addSubIssue, removeSubIssue, and reprioritizeSubIssue are GraphQL mutations, confirmed via schema introspection and live execution against a disposable test issue:

mutation { addSubIssue(input: { issueId: ID!, subIssueId: ID, subIssueUrl: String, replaceParent: Boolean }) { issue { ... } subIssue { ... } } }
mutation { removeSubIssue(input: { issueId: ID!, subIssueId: ID! }) { issue { ... } subIssue { ... } } }
mutation { reprioritizeSubIssue(input: { issueId: ID!, subIssueId: ID!, afterId: ID, beforeId: ID }) { ... } }

This is simpler than REST would have been: one round trip per mutation (plus a small ID-resolution query, since the mutations take GraphQL node IDs, not issue numbers), reusing the existing runGraphql plumbing instead of adding a second REST-based write path. The plan was updated in place rather than re-litigated — same redirect discipline as Phase 1b's field-value-union correction.

What was built

Files changed

 src/main/github/project-view.test.ts                             | +188 -1
 src/main/github/project-view.ts                                  | +97 -19
 src/main/github/project-view/internals.ts                        | +21 -0
 src/main/github/project-view/hierarchy.ts                        | new (read + write path)
 src/main/github/project-view/hierarchy.test.ts                   | new (22 tests)
 src/main/ipc/github.ts                                           | +29 -1
 src/main/runtime/orca-runtime.ts                                 | +38 -0
 src/main/runtime/rpc/methods/github.ts                           | +36 -0
 src/main/runtime/runtime-rpc.ts                                  | +4 -0
 src/preload/api-types.ts                                         | +15 -0
 src/preload/index.ts                                             | +22 -1
 src/renderer/src/components/GitHubItemDialog.tsx                 | +27 -0
 src/renderer/src/components/github-project/SubIssuesSection.tsx  | new
 src/renderer/src/components/github-project/SubIssuesSection.test.tsx | new (10 tests)
 src/renderer/src/web/web-preload-api.ts                          | +25 -1
 src/renderer/src/web/web-preload-api.test.ts                     | +34 -0
 src/shared/github-project-types.ts                                | +108 -0
 src/shared/github-issue-hierarchy-rollup.ts                       | new
 src/shared/github-issue-hierarchy-rollup.test.ts                  | new (7 tests)

 19 files changed/added, ~800 insertions

Also includes an unrelated-but-touched carryover from the Phase 1b session (ColumnResizeHandle.tsx, ProjectCell.tsx, ProjectRow.tsx, ProjectViewList.tsx, column-widths.ts, github-project-group-sort.ts) — already reported in issue #43; not re-described here.

New read path — getIssueHierarchy

Single on-demand GraphQL query (fired when the drawer opens, not baked into the Project table's paginated fetch) requesting the parent, this issue's subIssuesSummary, and 2 levels of subIssues (direct children + each child's own direct children), bounded by HIERARCHY_CHILDREN_PAGE_SIZE = 25 / HIERARCHY_GRANDCHILDREN_PAGE_SIZE = 10 to stay well under GitHub's 10s GraphQL timeout risk on wide/deep trees. Returns hasMoreChildren: boolean when either level's page didn't cover its totalCount, for a future "load more" affordance.

New pure aggregation utility — computeHierarchyRollup

src/shared/github-issue-hierarchy-rollup.ts — depth-agnostic recursive percentage calculator. GitHub's own subIssuesSummary only aggregates one level; this walks whatever depth was actually fetched and trusts the node's own subIssuesSummary as the terminal count for any branch that wasn't expanded further (so partial-depth trees still produce a correct total, not an undercount).

New write path — 3 GraphQL mutations, same-repo v1 scope

addSubIssueBySlug / removeSubIssueBySlug / reprioritizeSubIssueBySlug in project-view/hierarchy.ts. Each validates args (self-reference rejection, slug shape, conflicting before/after) before touching the network, then resolves the parent/child/sibling issue numbers to GraphQL node IDs via a single dynamically-aliased query (buildResolveIssueIdsQuery), then executes the mutation.

Cross-repo sub-issues (GitHub supports this since Sept 2025) are not in v1 scope — the args are same-repo only; documented as a fast-follow, not silently dropped.

SSH/remote-runtime wiring (AGENTS.md's SSH Use Case rule)

All 4 new methods (getIssueHierarchy, addSubIssue, removeSubIssue, reprioritizeSubIssue) are wired through the full existing remote-dispatch stack, not just the local Electron IPC path:

• orca-runtime.ts — 4 thin proxy methods (getGitHubProjectIssueHierarchy, etc.), same shape as the 15+ existing BySlug proxies.
• runtime/rpc/methods/github.ts — 4 new defineMethod entries with Zod param schemas.
• runtime-rpc.ts — allow-listed under github.project.*.
• web-preload-api.ts — routed for the browser/paired-web client (GITHUB_WEB_RPC_METHODS), with matching parity + routing tests.
• SubIssuesSection.tsx — dispatches via getActiveRuntimeTarget/callRuntimeRpc when a remote environment is active, falling back to local window.api.gh.*, mirroring SlugDialogBody.tsx's established pattern.

UI — SubIssuesSection.tsx

Mounted in GitHubItemDialog.tsx, issue pages only (isIssuePage branch), right after the existing GHEditSection metadata block. Renders:

• Parent row (clickable link to the parent issue), when present.
• Roll-up progress bar + completed/total text, when there are sub-issues.
• Each direct sub-issue as a clickable link + title, with (when editable) move-up / move-down / remove buttons.
• An "Issue number" input + "Add sub-issue" button, when editable.
• Renders nothing (<></>) when there's no parent, no sub-issues, and the drawer isn't editable — avoids cluttering every issue's drawer with an empty section.

Evidence

1. Live GraphQL mutation spike (2026-07-15, before writing any code)

Created a disposable issue, ran all 3 mutations against it live, confirmed each one's effect via a follow-up query, then reverted and closed the issue:

addSubIssue(#42, #44)        → #42.subIssuesSummary.total: 0 → 1 ✓, #44.parent.number: 37 ✓
removeSubIssue(#42, #44)     → #42.subIssuesSummary.total: 1 → 0 ✓, #44.parent: null ✓
reprioritizeSubIssue(#37, #44, beforeId: #38) → subIssues order: [44, 38, 39, 42] ✓ (was [38,39,42,44])

2. Unit test results (all real runs, this session)

Suite	Result
src/shared/github-issue-hierarchy-rollup.test.ts	7 passed (new file)
src/main/github/project-view/hierarchy.test.ts	22 passed (new file — normalizer + validation, no gh mocking needed)
src/renderer/.../SubIssuesSection.test.tsx	10 passed (new file)
src/main/runtime/rpc/methods/github.test.ts + runtime-rpc.test.ts + web-preload-api.test.ts	133 passed (SSH/remote-runtime wiring, including 4 new parity/routing rows)
Full sweep: src/main/github + src/main/runtime + src/shared + src/renderer/.../web + src/renderer/.../github-project + GitHubItemDialog.tsx + src/renderer/.../store	6643 passed, 8 skipped, 0 failed (484 files)
pnpm tc:node / tc:cli	clean
pnpm tc:web	clean except the same pre-existing, unrelated Monaco editor type mismatch reported in issue #43

3. Live UI verification — real Orca app, real writes, real revert

Connected via CDP to a freshly-launched Orca dev build (same method as issue #43 — no auth wall since it's the agent's own process, distinct from the headless browser tool / computer-use, both of which hit real environment limits last time). Opened the drawer for issue #37 in CodigoSinSiesta/1.

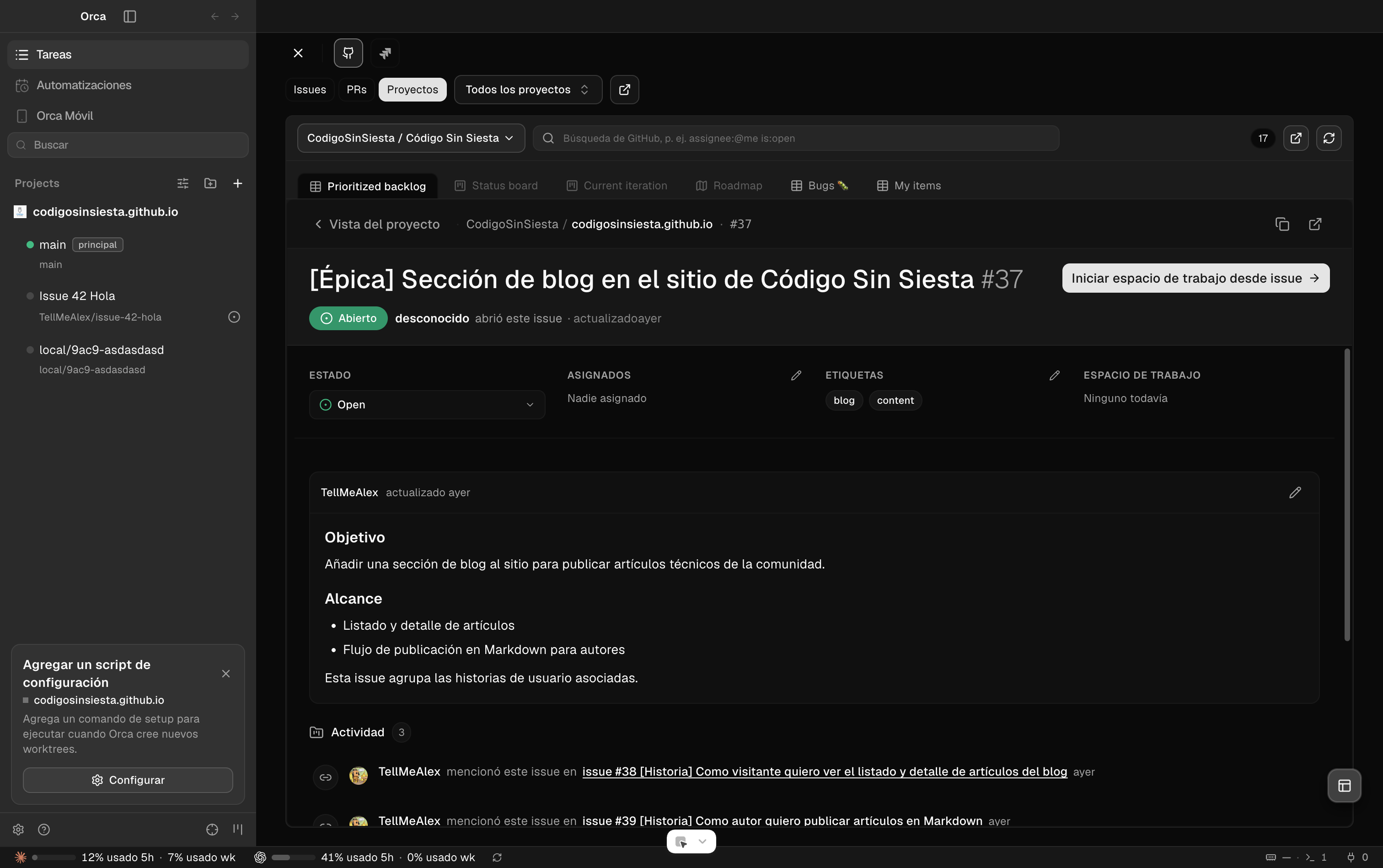

Before (Phase 1b only — Phase 2's mount point temporarily removed via git stash push -- GitHubItemDialog.tsx, confirmed via HMR reload, then restored via git stash pop):

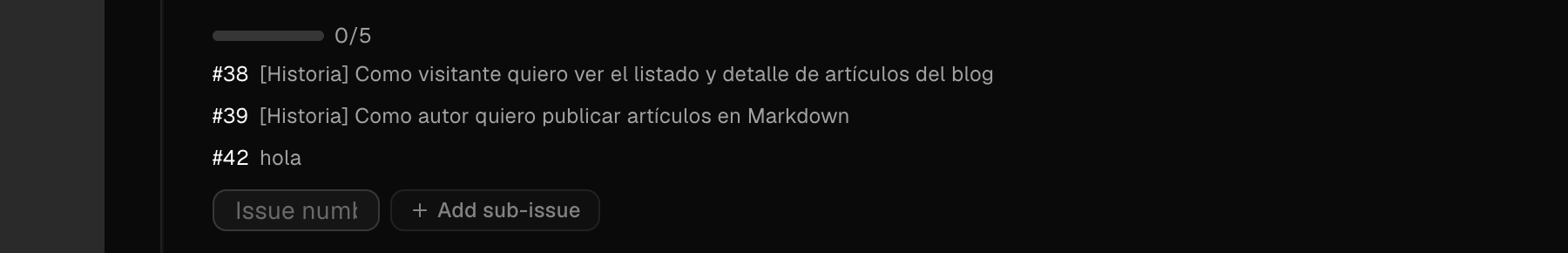

After (Phase 2, stable state — #37's real sub-issues #38/#39/#42, roll-up 0/5 — 3 direct children + 2 grandchildren via #38→#40 and #39→#41, matching computeHierarchyRollup's expected math exactly):

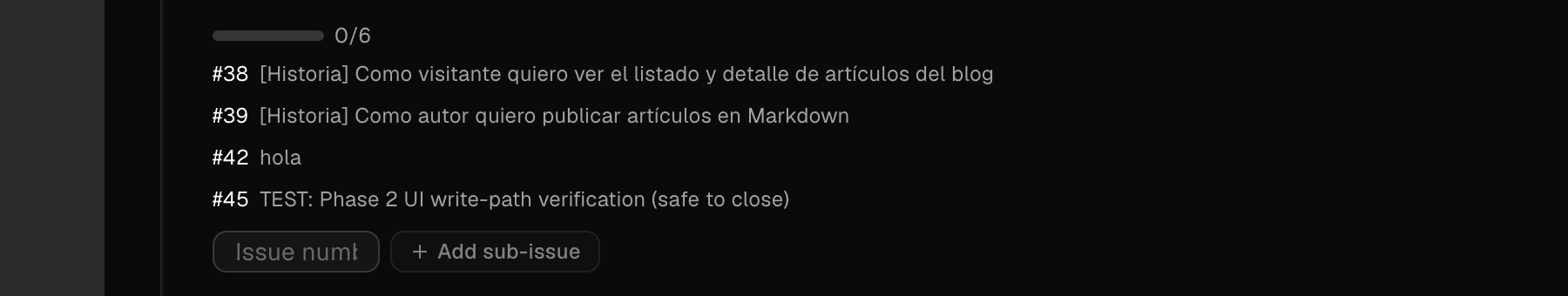

Live write-path proof — created disposable issue #45, typed 45 into the section's input, clicked "Add sub-issue": roll-up updated 0/5 → 0/6 and #45 appeared in the list, in the real running UI:

Verified against the live GitHub API (not just the UI) before and after each step:

after add:    #37.subIssuesSummary.total: 3 → 4 ✓, #45.parent.number: 37 ✓
after remove: #37.subIssuesSummary.total: 4 → 3 ✓, #45.parent: null ✓

Then clicked the section's "Remove #45" button (confirmed via UI observation the row disappeared and reappeared correctly after the async refetch), and closed the disposable issue.

Known limitations

• Same-repo sub-issues only in v1. GitHub supports cross-repo/cross-org sub-issues (since Sept 2025); the write-path args don't carry a second owner/repo yet. Documented fast-follow, not a silent gap.
• Depth-limit (8 levels) is not pre-validated client-side. Only the children-count/self-reference guards are cheap enough to check without an extra read; a depth violation is relayed via GitHub's own error message through the existing classifyProjectError path rather than pre-checked. Documented in hierarchy.ts's validation section comment.
• 2-level fetch cap. getIssueHierarchy fetches the issue's direct children and each child's own direct children, not further. hasMoreChildren signals when either level's page didn't cover its full count; a "load more" UI affordance for deeper/wider trees is not built in this pass.
• No nested/indented rows — this phase is entirely additive to the drawer; the Project table stays flat, per the RFC's Phase 2/Phase 3 split and the user's explicit "planifiquemos Phase 3 después" direction.

References

• RFC: docs/reference/2026-07-14-github-projects-hierarchy-traceability-design.md (Phase 2 section updated with a shipped-status note and the REST→GraphQL correction)
• Plan: docs/reference/2026-07-15-github-projects-hierarchy-phase2-plan.md
• Phase 1b report (prior phase, same RFC): issue Phase 1b — Hierarchy traceability in GitHub Projects #43
