macPad

A touch-first macOS workspace for jailbroken iPad.

macPad presents a Ventura macOS userspace as native iPadOS windows. macOS arm64 applications run in a chroot; iPadOS keeps control of the kernel, AGX GPU, display, audio, input, power state, and Stage Manager lifecycle.

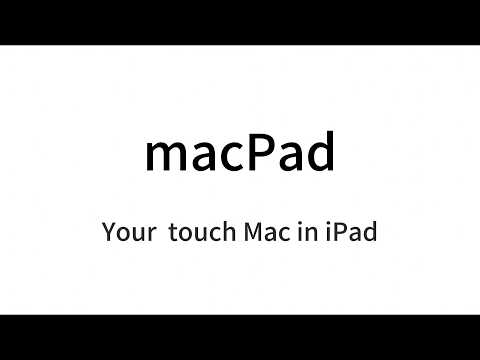

The video is a historical milestone, not a compatibility or performance guarantee for the current build.

Warning

macPad is a controlled research beta. It requires a jailbroken test device, private/version-specific interfaces, a full macOS filesystem, and recoverable backups. Read AGENTS.md before changing or porting it.

What works

• iPadOS window mode: macOS windows become independent UIWindowScenes with Stage Manager participation.
• Full-workspace mode: Finder, Dock, menu bar, Mission Control, and macOS desktop workflows.
• Native IOSurface/Metal presentation with an always-available composited fallback and strict direct-drawable acceleration.
• Adaptive 80–120 Hz presentation on validated ProMotion hardware.
• Touch scrolling, selection, move/resize, right-click, zoom/rotate, Mission Control gestures, pointer input, and native window constraints.
• Magic Keyboard and software shortcut toolbar routing, including arrows and Control/Command chords.
• A Game Camera input mode with iPadOS pointer lock, unbounded Magic Keyboard and direct-touch camera motion, automatic activation from an application's relative-mouse request. The current absolute-click correction is a guarded exact-window candidate and still needs fresh in-game acceptance; it is not advertised as fixed.
• iOS Chinese IME composition committed to the exact focused AppKit window.
• Retina Standard and Larger UI modes; unbounded AppKit windows can grow beyond the virtual screen when the app itself has no size limit.
• Clipboard, file import/export, cross-app drag and drop, open/save panels, audio, location, lock/sleep coordination, and bounded thermal telemetry.
• Scoped compatibility work for VS Code/Electron, Steam, Office, and selected macOS system applications.

The renderer does not require VNC or RFB. VNC remains available as a diagnostic and recovery observer.

Validated configurations

Device and system	Jailbreak	macOS userspace	Status
iPad13,6 (M1), iPadOS 16.3.1 / 20D67	Dopamine rootless	Ventura 13.4 / 22F66	Primary and broadest validation target
iPad14,5 (M2), iPadOS 16.0 / 20A8372	Dopamine rootless	Ventura 13.4 / 22F66	Display, input, audio, VS Code, Steam, and exact arm64 Unity game path validated with narrower coverage
iPad14,3 (M2), iPadOS 16.5.1 / 20F75	Dopamine rootless	Ventura 13.4 / 22F66	Porting candidate: compiler/AGX/workspace startup reached runtime witnesses, but final unlocked Host pixels and interaction are still pending
iPad13,7, iPadOS 16.6	NathanLR	Ventura experiment	Unsupported by the current CoreTrust/signing chain
Other devices/builds	unknown	unknown	Must be treated as a new port

Do not interpret this as “all M-series or A-series devices work.” Private framework UUIDs, instructions, GPU ABIs, and jailbreak trust behavior vary by build. The installer intentionally refuses environments without the Dopamine-compatible /var/jb/usr/bin/jbctl backend.

Performance is workload-specific. On the recorded M2 window-mode runs, corrected VS Code TestUFO produced about 117.7–117.9 visible FPS, and a foreground 4K60 YouTube workload produced about 59.2 visible FPS while the panel scheduler remained near 119.9 Hz. The arm64 Unity 2022.3.62f2 7 Days to Die startup/title path reached about 116 FPS. That is not an in-world M2 MacBook-equivalent result. See dated evidence for exact scope and caveats.

Rendering policy

macPad uses two layers:

1. Every supported app has a final-composite or exact-window IOSurface/Metal fallback.
2. A window or region uses direct-drawable acceleration only when producer identity, ownership, geometry, frame sequence, and GPU completion are valid.

Resize, Scene disconnect, or owner change invalidates the direct surface before fallback. Streams are bounded latest-state channels; a slow consumer drops obsolete frames instead of growing memory or blocking WindowServer. These rules are what let smooth 120 Hz presentation coexist with sane heat and power.

Install and start

macPad does not distribute macOS, Apple private frameworks, commercial apps, or game data. Obtain the Ventura 13.4 / 22F66 filesystem legally and prepare it at /var/mnt/rootfs.

For the full prerequisites, large-rootfs resumable transfer, build, trustcache, and recovery instructions, follow the MacWSBootingGuide README. The source trees are intentionally kept aligned; the guide contains the developer-oriented explanation while this repository is the product-facing home.

On a prepared Dopamine device with Theos installed:

ssh -p <SSH_PORT> mobile@<DEVICE> \
  'THEOS=/var/jb/var/mobile/theos \
   bash /var/jb/var/mobile/macPad/misc/build_on_ios.sh'

Or cross-build from macOS:

gmake FINALPACKAGE=1 STRIP=0 THEOS_PACKAGE_SCHEME=rootless package install \
  THEOS_DEVICE_IP=<DEVICE> THEOS_DEVICE_PORT=<SSH_PORT> \
  GO_EASY_ON_ME=1

Run post-install and start the production profile from the iOS shell:

sudo bash /var/jb/usr/macOS/bin/postinst.sh
sudo bash /var/jb/usr/macOS/bin/macos_gui.sh production
sudo bash /var/jb/usr/macOS/bin/macos_gui.sh status

Stop cleanly:

sudo bash /var/jb/usr/macOS/bin/macos_gui.sh stop

If the stack enters a crash loop or an old profiler/debugger remains active:

sudo bash /var/jb/var/mobile/macPad/misc/cleanup_all.sh

Do not repeatedly restart WindowServer while it is looping.

Develop and deploy changes

Use the content-verified device pipeline rather than overwriting a live signed binary:

export MACWS_DEVICE=mobile@<DEVICE>
export MACWS_DEVICE_PORT=<SSH_PORT>
export MACWS_REMOTE_PROJECT=/var/jb/var/mobile/macPad

bash misc/device_pipeline.sh --sync-only
bash misc/device_pipeline.sh --component host --restart-workspace
bash misc/device_pipeline.sh --component full --restart-workspace

The pipeline supports runtime, display, input, workspace, host, hostd, compiler, libmachook, metal, and full. It verifies source and installed artifacts and avoids stale vnode code-signature cache problems. If this variable is omitted, the shared pipeline's canonical remote default is /var/jb/var/mobile/MacWSBootingGuide.

Run tests before device acceptance:

python3 -m unittest discover -s misc -p 'test_*.py'
python3 misc/audit_runtime_switches.py
clang -std=c11 -Wall -Wextra -Iinclude misc/macws_protocol_test.c \
  -o /tmp/macws_protocol_test
/tmp/macws_protocol_test
git diff --check

Use Codex or another coding agent to port macPad

Start by making the agent read AGENTS.md completely. That file is the shared engineering memory for Codex, Claude Code, other agents, and human maintainers. It records the architecture, exact compatibility matrix, failed approaches, binary-evidence discipline, test/deploy workflow, and subsystem invariants.

Suggested prompt:

Read AGENTS.md completely. Treat my device/build as unsupported until proven. Inventory hardware, iPadOS/macOS builds, jailbreak trust backend, rootfs, free space, and exact target UUIDs/hashes without changing the device. Reproduce one bounded failure and separate FACT from THEORY. Do not use a NOP, forced branch, blanket validation bypass, skipped assert, or zero-filled fake object as a fix. Trace the upstream producer, support the diagnosis with exact-binary disassembly or a copied runtime witness, add a narrow fail-closed adapter and tests, validate the visible/protocol endpoint and thermal state, write dated evidence, and synchronize MacWSBootingGuide and macPad.

For reliable agent work:

• Use placeholders for addresses and temporary environment variables for credentials. Never commit passwords, private keys, NAS credentials, or user-specific hostnames.
• Require exact device/build/UUID gates for private binary adapters. Unknown identities fail closed.
• Require real acceptance: pixels, advancing frame sequence, input result, audio callback, or completed protocol response. Uptime alone is insufficient.
• Preserve the composited fallback; direct-drawable is an optimization, not an application requirement.
• Profile before changing pacing. Do not reduce FPS merely to hide heat.
• Close TestUFO, Aquarium, video, and other benchmark windows after every run.
• Add a focused test and a dated note under docs/evidence for every device-only finding.
• Commit and push both repositories separately after shared files are synced.

Known boundaries

• Stock Steam 7 Days to Die is x86_64 beyond the launcher. iPadOS 16 lacks the translated-task/Rosetta kernel contract, so oahd AOT output does not make that executable runnable. The validated experiment uses an exact arm64 Unity player and legally supplied game data.
• VS Code/Electron and Steam have scoped adapters; success there does not prove arbitrary Electron, Chromium, or Steam games work.
• The exact Magic Keyboard + iOS IME routing contract is source/RE verified; consult the latest dated evidence before claiming a new physical-keyboard combination passed.
• A successful build, install, or long-lived process is not a rendering or stability result.
• Apple binaries and proprietary app/game assets must never enter Git.

Documentation

• Engineering and agent handbook
• Architecture
• Display/host design
• Production-readiness review
• Runtime switches
• Performance profiler
• Evidence index

Credits

• Codex and other contributors who preserved reproducible tests and evidence
• khanhduytran0/MacWSBootingGuide
• zhuowei/iOS-run-macOS-executables-tools
• Asahi Linux
