Documention

Home Page URL

• http://ec2-3-80-59-198.compute-1.amazonaws.com:5000/

Postman Collection Details

• https://documenter.getpostman.com/view/19885814/UzBsGjHs
• Live Host Name: ec2-3-80-59-198.compute-1.amazonaws.com

How to Run in EC2

• Clone the repository in any directory
• move to the directory and hit the below command to install dependencies

  pip install -r requirements.txt

  • Note: Make sure Python3.5 > is installed in EC2
• run these commands

  export FLASK_APP=app.py

  flask run --host=0.0.0.0

How to Run in Local Environment

• Install Python 3 from https://www.python.org/downloads/

• Clone the Repository

• Run this command to install dependencies

  pip install -r requirements.txt

• Make sure AWS credentials are configured if not use the below command to configure

  aws configure --profile 'profileName'

  Or Add ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY in config.py

• Add all credentials in the cred.json file see the sample file in the current working directory

  • Upload cred.json to the s3 bucket

  • Look for the config.py file and replace the bucket name and path for the cred.json file

  • We can use Secret Manager to fetch credentials but it cost so we are using s3 to fetch credentials

  • Credentials were retrieved in run time Environment so there are no hardcoded credentials available in the project

• Run this command to test in the local environment :

  python app.py

Platform Flow

•

User Flow

•

Schema

•

Super Admin Access

• Use this api to create admin credentials
  • If credentials are generated using UI please route to below endpoint
    • Example : http://127.0.0.1:5000/super_admin
    • P.S Enter token that was configured in cred.json file
  • Else use this api to create admin credentials
    • Example : http://127.0.0.1:5000/super_admin/register (Request-Type : POST)
      • Form parameters keys :
        • email :
        • password :
        • token :

Admin Access

• Use the API key to generate a token for User access

  • If the user wants Full access (Request-Type: GET)
    • Example: http://127.0.0.1:5000/admin/token?api=qasedddf&username=abcd

• If the user wants Limited access with an expiry time (Request-Type: GET)

  • Example : http://127.0.0.1:5000/admin/token?api=qasedddf&username=abcd&expirydate=2023-06-04 10:42:00

• If the user wants Limited access with single file access with an expiry time (Request-Type: GET)

  • Example: http://127.0.0.1:5000/admin/token?api=qasedddf&username=abcd&expirydate=2023-06-04 10:42:00&filename=temp.jpg

User's Access

• If User want's to Upload a file (Request-Type : POST)

  • Use Below Cloud-Provider Key Names For Uploading Files :

    • Amazon web Services(AWS) : AWS
    • Google cloud provider(GCP) : GCP
    • Azure cloud provider(Azure) : Azure

  • Example: http://127.0.0.1:5000/data/token
    Use the form to post a request

           parameters : {'CLOUD' :  , 'file':  }


  • Note : Multiple Files Upload available using UI

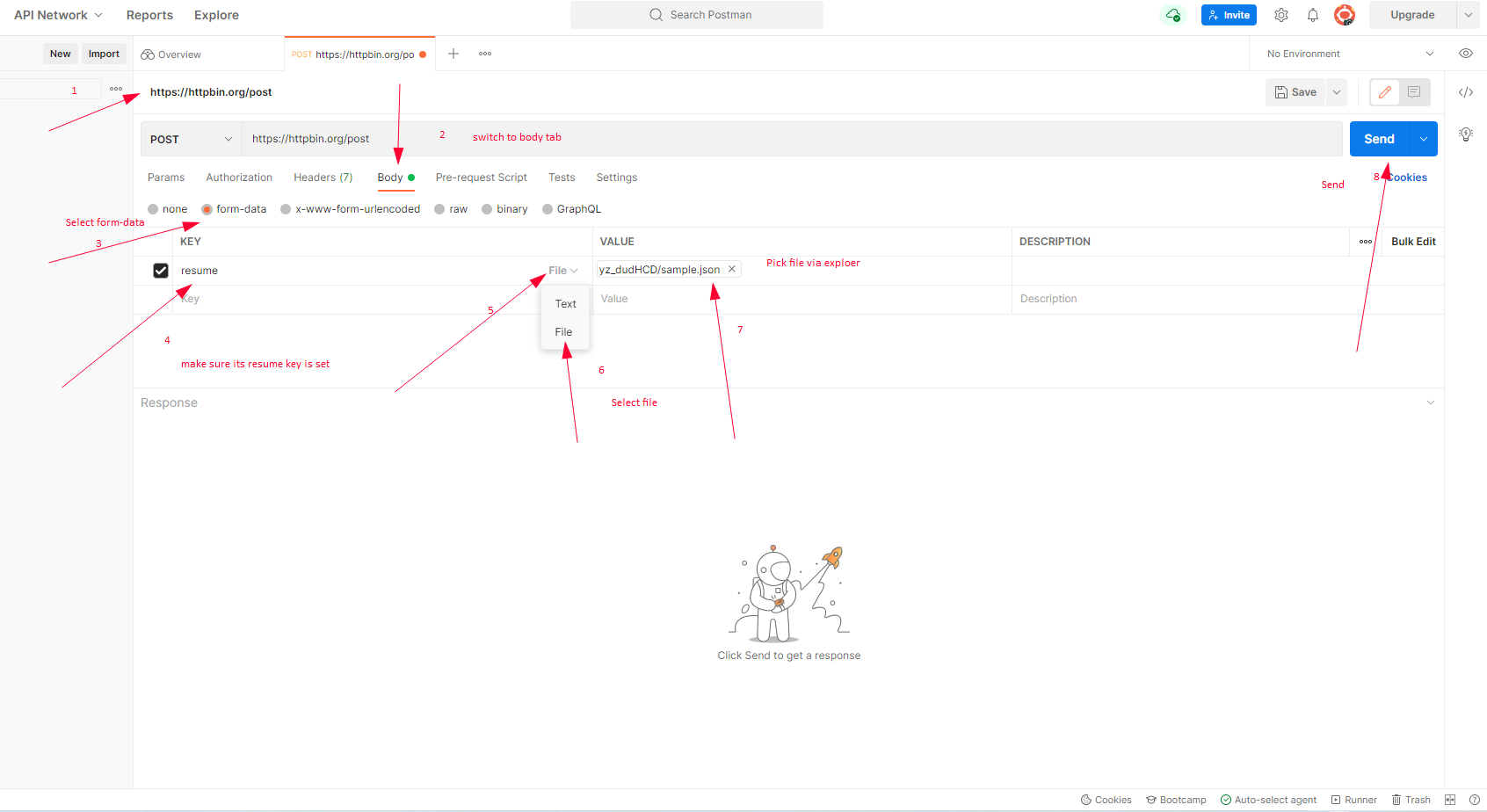

  • Choose respective file for key-value 'file'

    ( This Image is Just for reference copied from Internet)

  •

• If the user wants to download a file (Request-Type: GET)

  • Example: http://127.0.0.1:5000/get_file/token?search=temp.txt

• If the user wants to list files that are Uploaded (Request-Type: GET)

  • Example: http://127.0.0.1:5000/list_files/token

Programmatic Access

• Python 3

  • To upload a file using the snippet below

    import requests

    url = "http://127.0.0.1:5000/data/6bf9d290957e02a187926cffbfe2bea0af7c56b2161bdda73ee9f5fe9c1666e1"

    payload={}
    files=[
    ('file',('Capture.JPG',open('/C:/Users/Prashanth Reddy/Downloads/Capture.JPG','rb'),'application/octet-stream'))
    ]
    headers = {}

    response = requests.request("POST", url, headers=headers, data=payload, files=files)

    print(response.text)




  • To download a file using the snippet below

    import requests
    ResultUrl = ''
    resp = requests.get(ResultUrl)
    print(resp.text)


• Java

  • To Upload a file use the snippet below :

    OkHttpClient client = new OkHttpClient().newBuilder()
        .build();
        MediaType mediaType = MediaType.parse("text/plain");
        RequestBody body = new MultipartBody.Builder().setType(MultipartBody.FORM)
        .addFormDataPart("file","Capture.JPG",
            RequestBody.create(MediaType.parse("application/octet-stream"),
            new File("/C:/Users/Prashanth Reddy/Downloads/Capture.JPG")))
        .addFormDataPart("CLOUD","GCP")
        .build();
        Request request = new Request.Builder()
        .url("http://127.0.0.1:5000/data/6bf9d290957e02a187926cffbfe2bea0af7c56b2161bdda73ee9f5fe9c1666e1")
        .method("POST", body)
        .build();
        Response response = client.newCall(request).execute();


  • To download a file use the snippet below:

    OkHttpClient client = new OkHttpClient().newBuilder()
    .build();
    MediaType mediaType = MediaType.parse("text/plain");
    RequestBody body = RequestBody.create(mediaType, "");
    Request request = new Request.Builder()
    .url("http://127.0.0.1:5000/get_file/6bf9d290957e02a187926cffbfe2bea0af7c56b2161bdda73ee9f5fe9c1666e1?search=Capture.JPG")
    .method("GET", body)
    .build();
    Response response = client.newCall(request).execute();


• C#

  • To Upload a file use the snippet below :

        var client = new RestClient("http://127.0.0.1:5000/data/6bf9d290957e02a187926cffbfe2bea0af7c56b2161bdda73ee9f5fe9c1666e1");
    client.Timeout = -1;
    var request = new RestRequest(Method.POST);
    request.AddFile("file", "/C:/Users/Prashanth Reddy/Downloads/Capture.JPG");
    request.AddParameter("CLOUD", "GCP");
    IRestResponse response = client.Execute(request);
    Console.WriteLine(response.Content);


  • To download a file use the snippet below :

        var client = new RestClient("http://127.0.0.1:5000/get_file/6bf9d290957e02a187926cffbfe2bea0af7c56b2161bdda73ee9f5fe9c1666e1?search=Capture.JPG");
        client.Timeout = -1;
        var request = new RestRequest(Method.GET);
        IRestResponse response = client.Execute(request);
        Console.WriteLine(response.Content);
