fix: add 2pi² to z-state diffusion computation - #195

Merged
J-Endres merged 2 commits into
mainfrom
fix-diffusion
Oct 6, 2026
Merged

J-Endres merged 2 commits into
mainfrom
fix-diffusion

Conversation

@J-Endres

@J-Endres J-Endres commented Oct 6, 2026

Copy link
Copy Markdown
Collaborator

the diffusion computation for z-states was missing a 2pi when computing the b-value from the k-dephasing. k has unit 1/m while the formula expects rad/m. For + states this error was not present.

The effect is minor for most sequences.

@github-actions

github-actions Bot commented Oct 6, 2026

Copy link
Copy Markdown

Simulation test: main (before) vs. this PR (after)

Sequence Status max mag NRMSE max phase RMSE max runtime Δ
mr0_DREAM_STE_seq ❌ 3.05e-02 6.05e-01 +0.8%
mr0_DWI_SE_EPI ✅ 0.00e+00 0.00e+00 +2.2%
mr0_EPI_2D_seq ✅ 0.00e+00 0.00e+00 -1.6%
mr0_FID_seq ✅ 0.00e+00 0.00e+00 +1.3%
mr0_FLASH_2D_seq ❌ 7.10e-02 5.74e-01 +4.7%
mr0_GRE_to_FLASH ⚠️ – – –
mr0_RARE_2D_seq ❌ 3.20e-01 4.67e-01 +2.3%
mr0_SE_CPMG_seq ✅ 0.00e+00 0.00e+00 +1.1%
mr0_STE_3pulses_5echoes_seq ✅ 6.86e-09 1.49e-08 +4.2%
mr0_TSE_2D_multi_shot_seq ❌ 2.42e-02 1.90e-01 +1.6%
mr0_bSSFP_2D_seq ✅ 0.00e+00 0.00e+00 +5.6%
mr0_diffusion_prep_STEAM_2D_seq ❌ 1.64e-02 2.86e-01 +9.0%

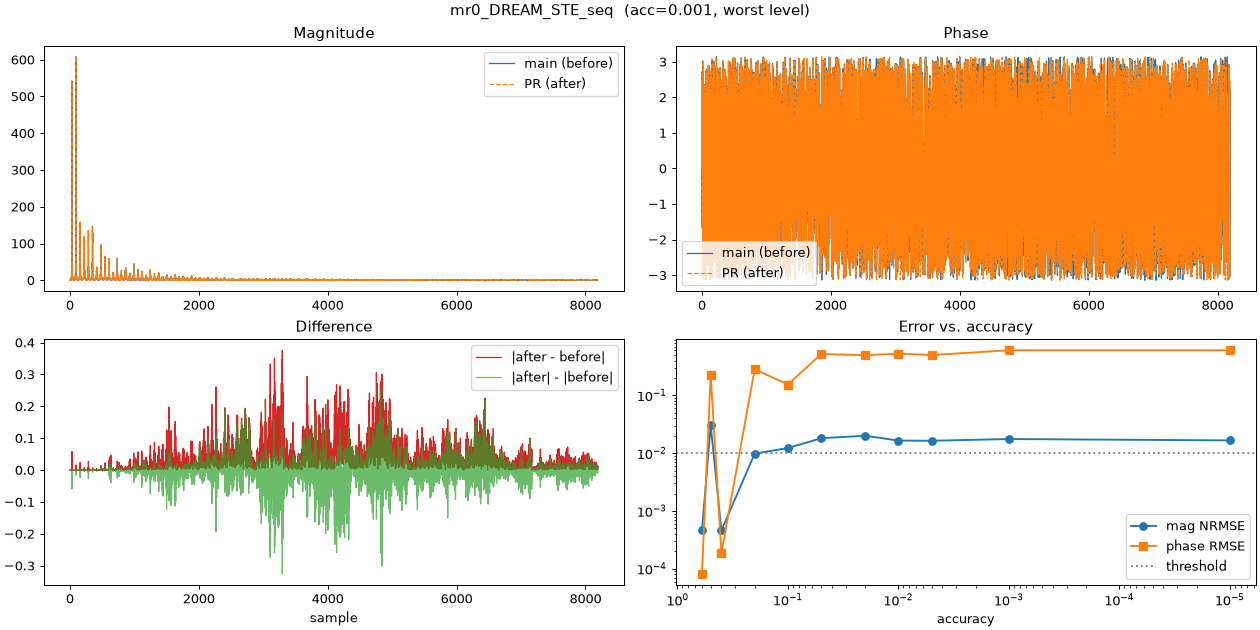

❌ mr0_DREAM_STE_seq: Mag RMSE too high (0.03046) at acc=0.50000

mr0_DREAM_STE_seq

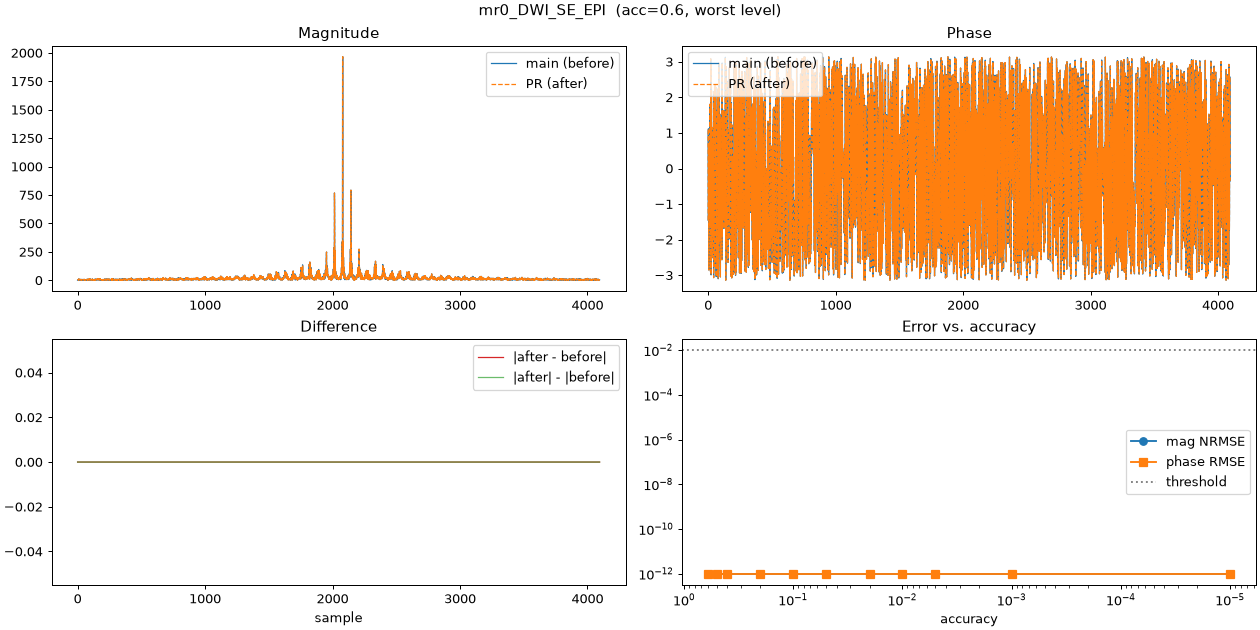

✅ mr0_DWI_SE_EPI: All tests passed.

mr0_DWI_SE_EPI

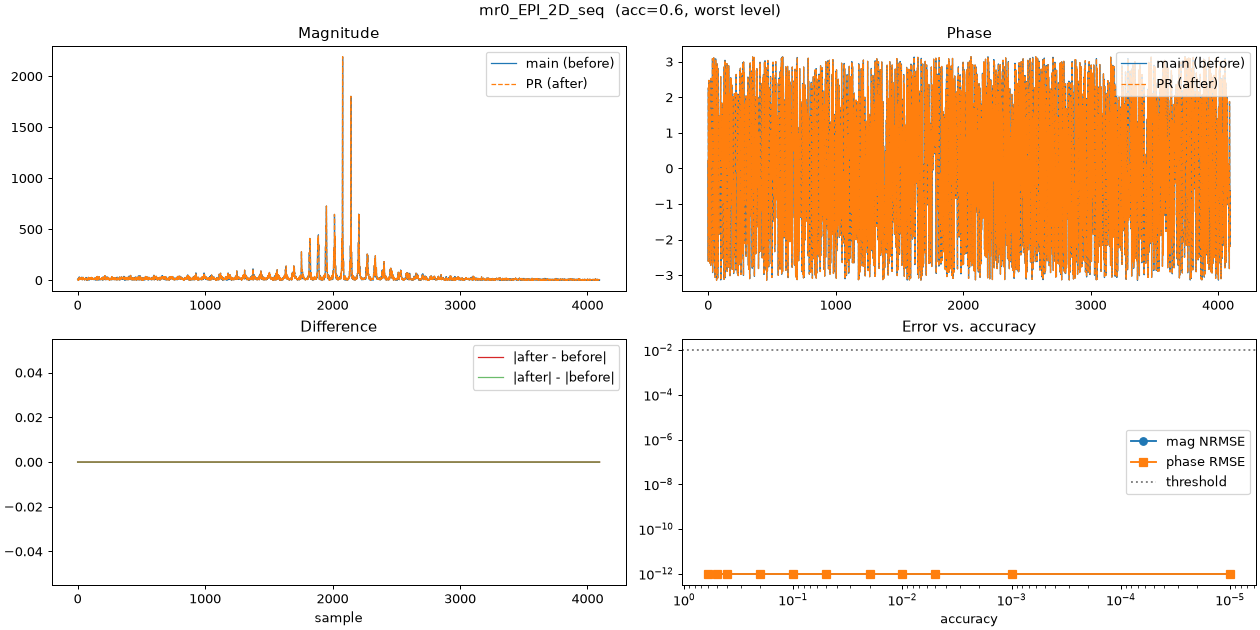

✅ mr0_EPI_2D_seq: All tests passed.

mr0_EPI_2D_seq

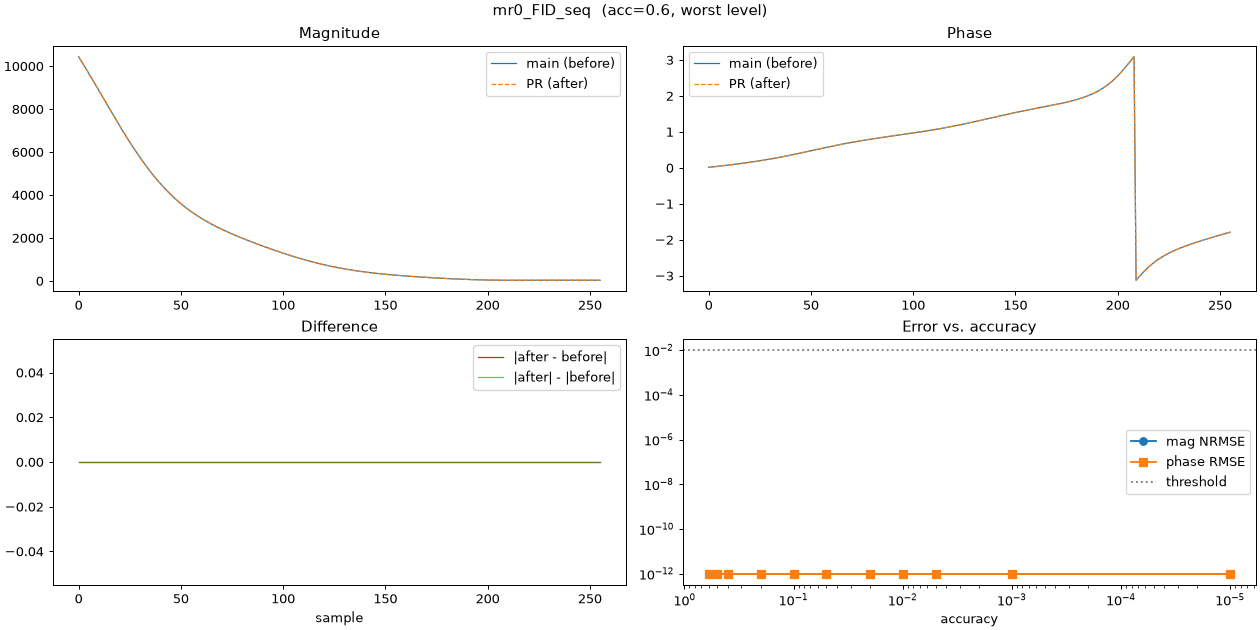

✅ mr0_FID_seq: All tests passed.

mr0_FID_seq

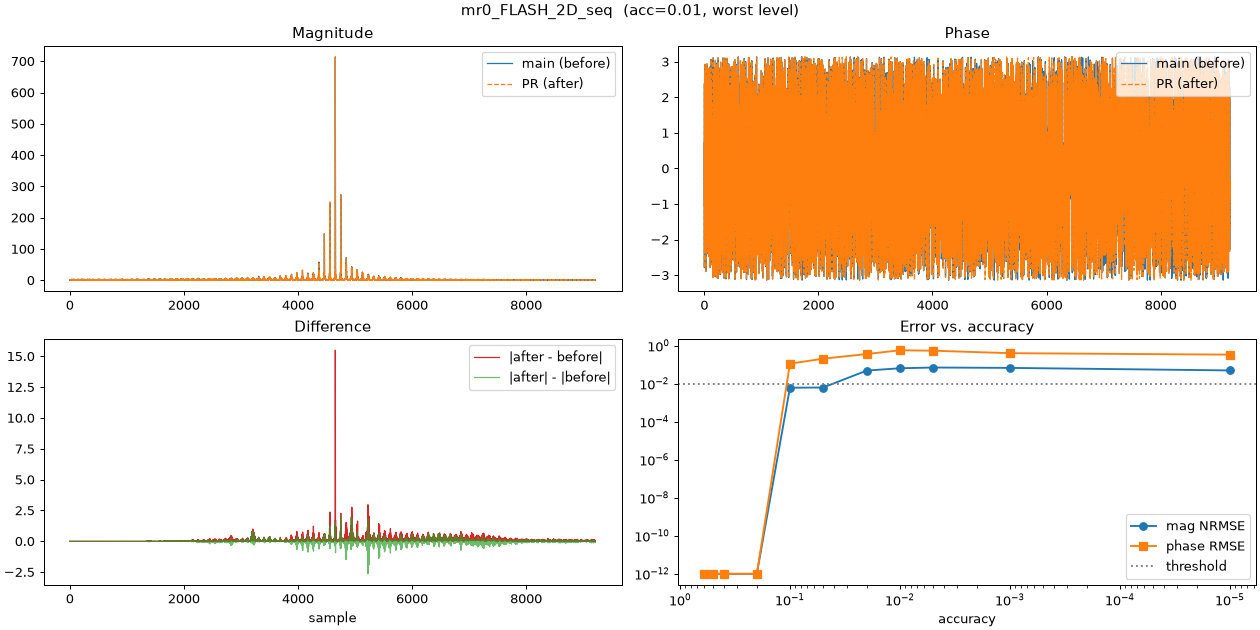

❌ mr0_FLASH_2D_seq: Phase RMSE too high (0.11352) at acc=0.10000

mr0_FLASH_2D_seq

⚠️ mr0_GRE_to_FLASH: No comparison possible: [Errno 2] No such file or directory: '/home/runner/work/MRzero-Core/MRzero-Core/tests/simulation_test/ref_files/mr0_GRE_to_FLASH.seq.npz'

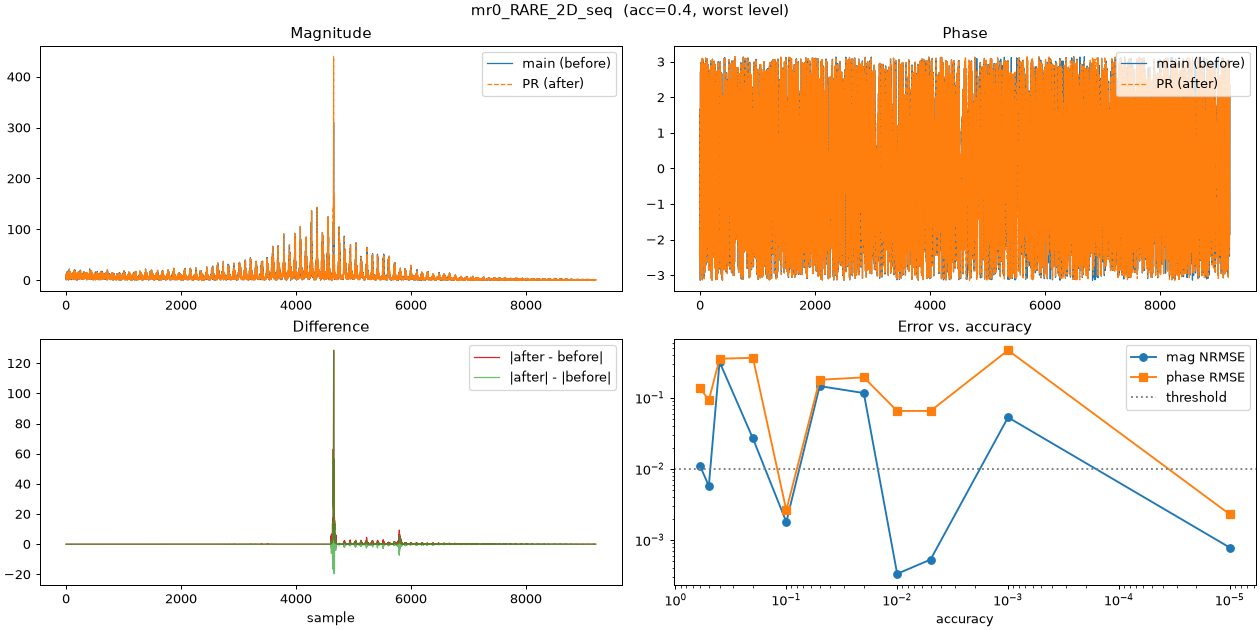

❌ mr0_RARE_2D_seq: Mag RMSE too high (0.01109) at acc=0.60000

mr0_RARE_2D_seq

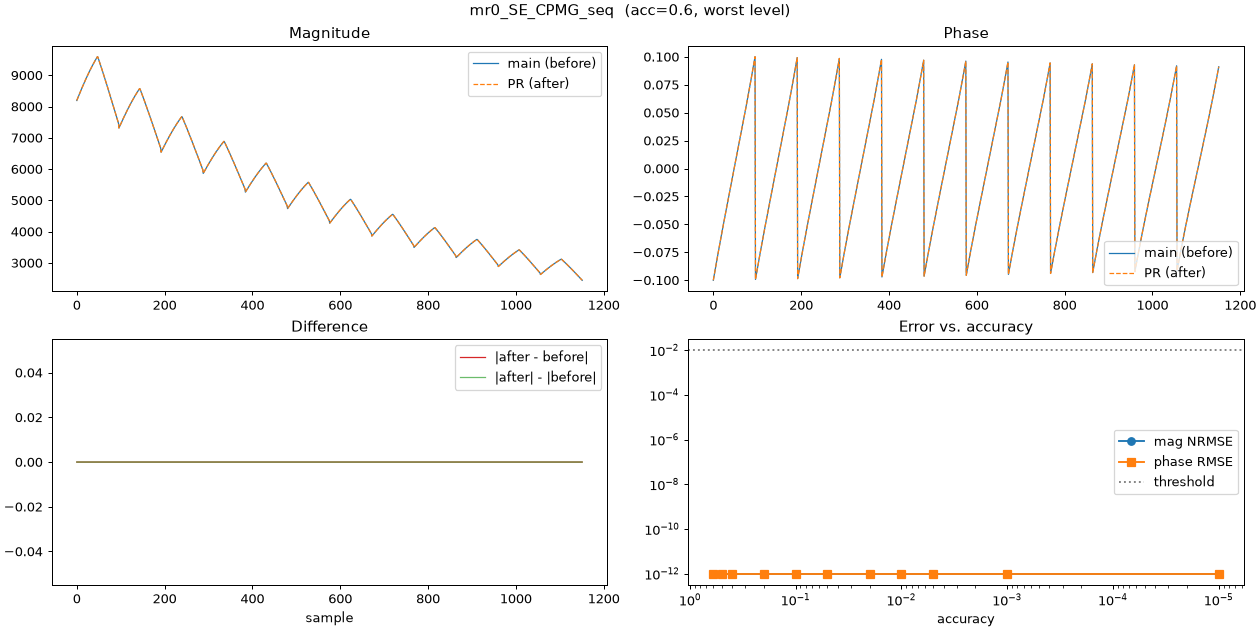

✅ mr0_SE_CPMG_seq: All tests passed.

mr0_SE_CPMG_seq

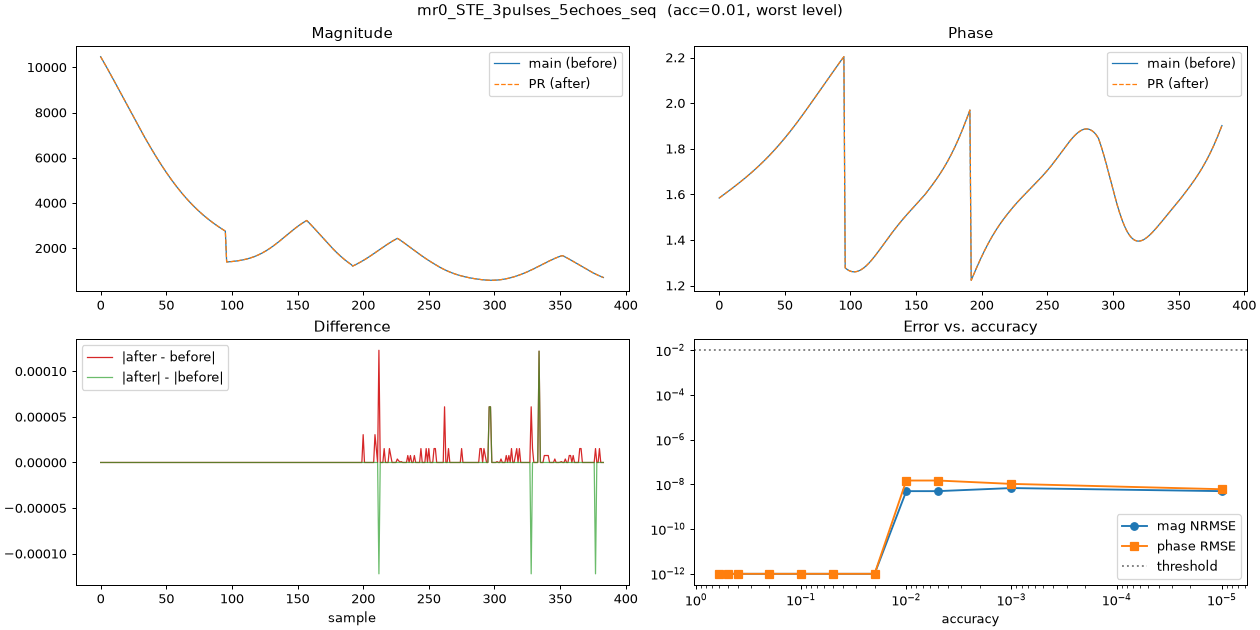

✅ mr0_STE_3pulses_5echoes_seq: All tests passed.

mr0_STE_3pulses_5echoes_seq

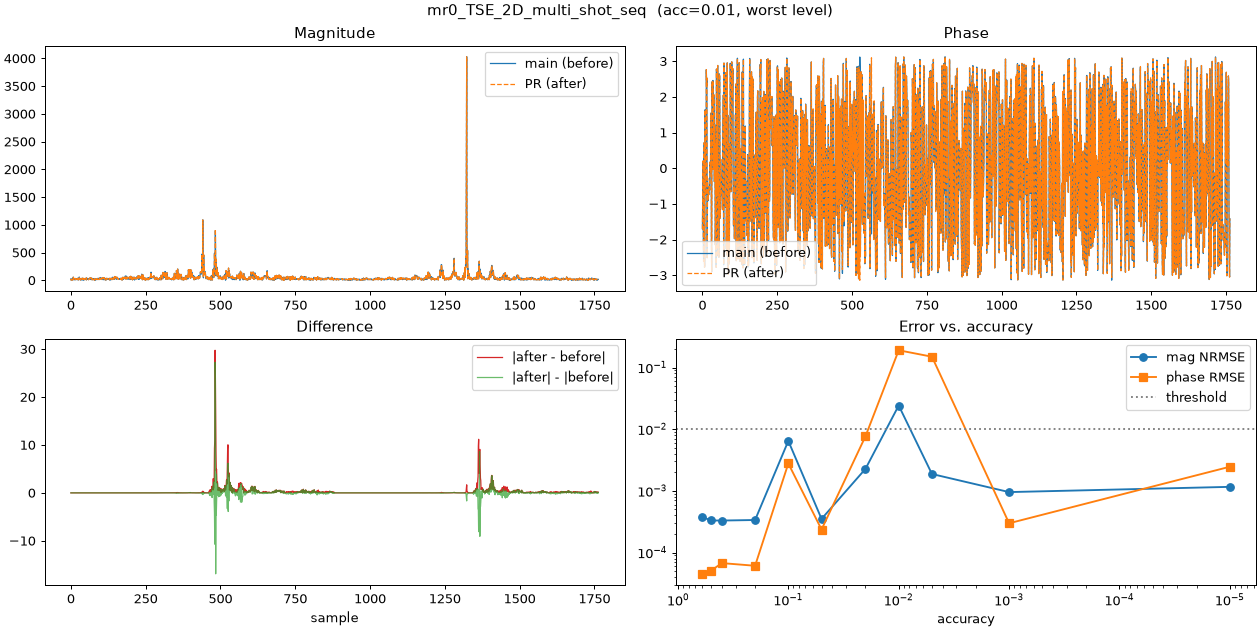

❌ mr0_TSE_2D_multi_shot_seq: Mag RMSE too high (0.02420) at acc=0.01000

mr0_TSE_2D_multi_shot_seq

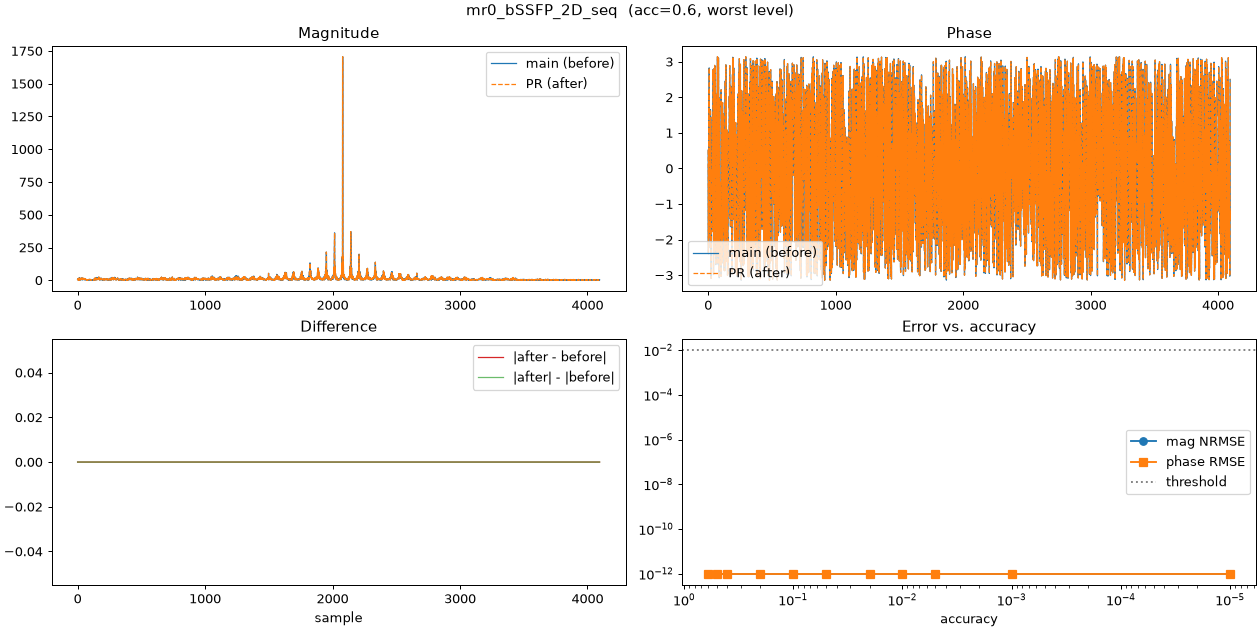

✅ mr0_bSSFP_2D_seq: All tests passed.

mr0_bSSFP_2D_seq

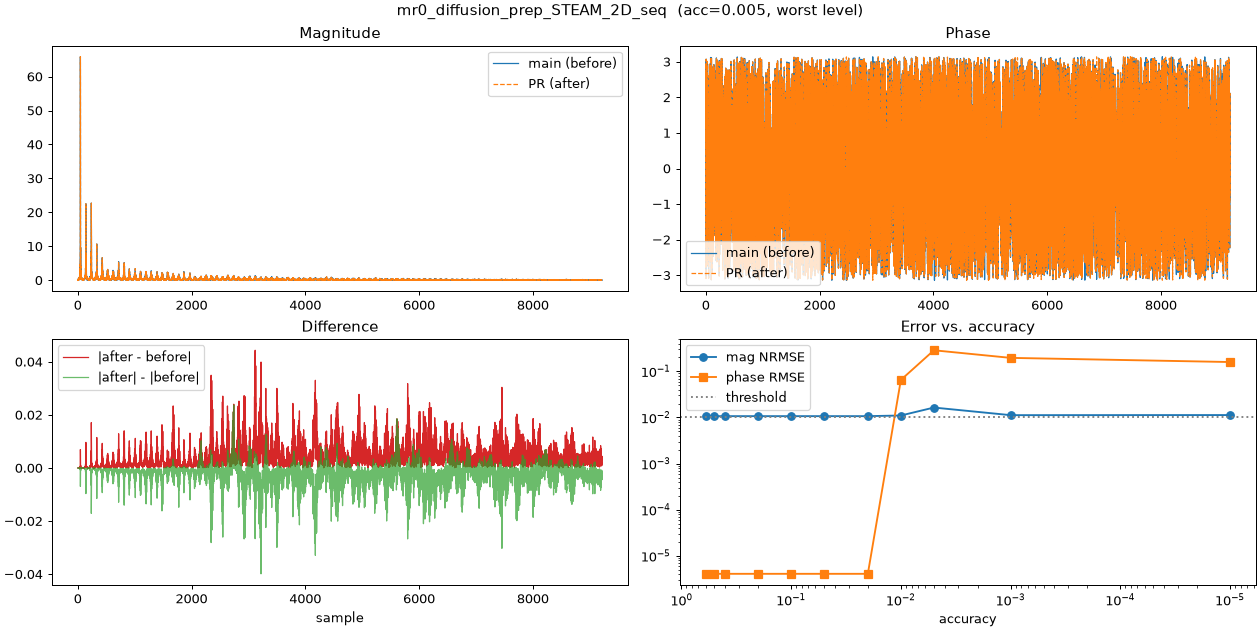

❌ mr0_diffusion_prep_STEAM_2D_seq: Mag RMSE too high (0.01070) at acc=0.60000

mr0_diffusion_prep_STEAM_2D_seq

Workflow run — raw .npz data is attached as artifacts.

@J-Endres
J-Endres merged commit f6fe1e5 into main Oct 6, 2026
28 of 33 checks passed
@J-Endres
J-Endres deleted the fix-diffusion branch October 6, 2026 12:05
