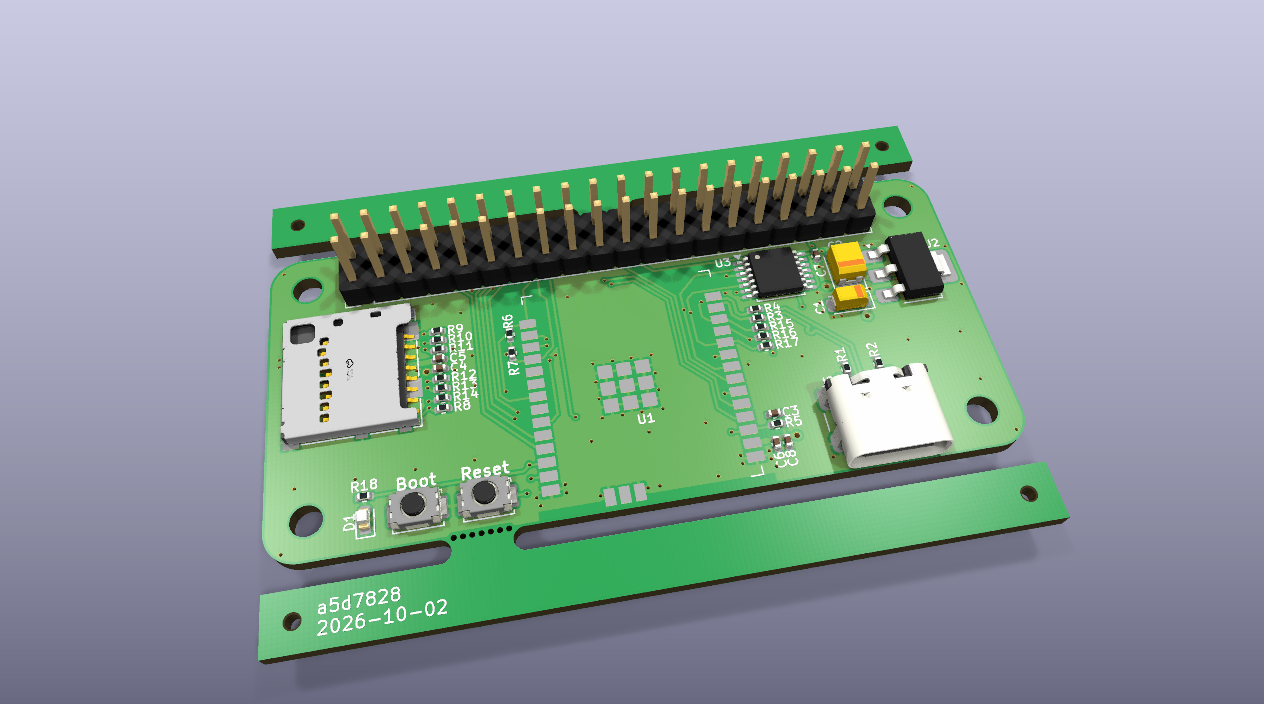

This board is supposed to replace the Raspberry Pi Zero 2W in the bloop box with a cheaper alternative, using an ESP32-C5.
It will support all functions of the bloop box and can be used as a drop-in-replacement for the Raspi. In addition, due to the capabilities of the ESP32-C5 this will have support for 5GHz WiFi.
| Function | ESP-Pin |
|---|---|
| Button1 (BOOT) | GPIO 28 |
| Button2 | GPIO 27 |
| LED1 | GPIO 25 |
| LED2 | GPIO 26 |
| I2C SCL | GPIO 3 |
| I2C SDA | GPIO 2 |
| I2S BCLK | GPIO 23 |
| I2S DIN | GPIO 4 |
| I2S LRCLK | GPIO 24 |
| SPI MISO | GPIO 9 |
| SPI MOSI | GPIO 8 |
| SPI SCK | GPIO 6 |
| NFC CS | GPIO 10 |
| NFC IRQ | GPIO 0 |
| NFC RST | GPIO 1 |
| SD CS | GPIO 5 |
| SD Detect | GPIO 7 |
| Serial RX | GPIO 12 |
| Serial TX | GPIO 11 |
