In short

In a right-to-left layout (Arabic, Hebrew), five components still draw their chevrons pointing the left-to-right way: the Menu, ContextMenu and DrawerMenu submenu triggers, Pagination, and the default Breadcrumb separator. So the submenu chevron points away from the submenu it opens, and the pagination and breadcrumb arrows point backwards.

The fix adds rtl:rotate-180 to those six icons, the same class Calendar already uses. Left-to-right layouts don't change.

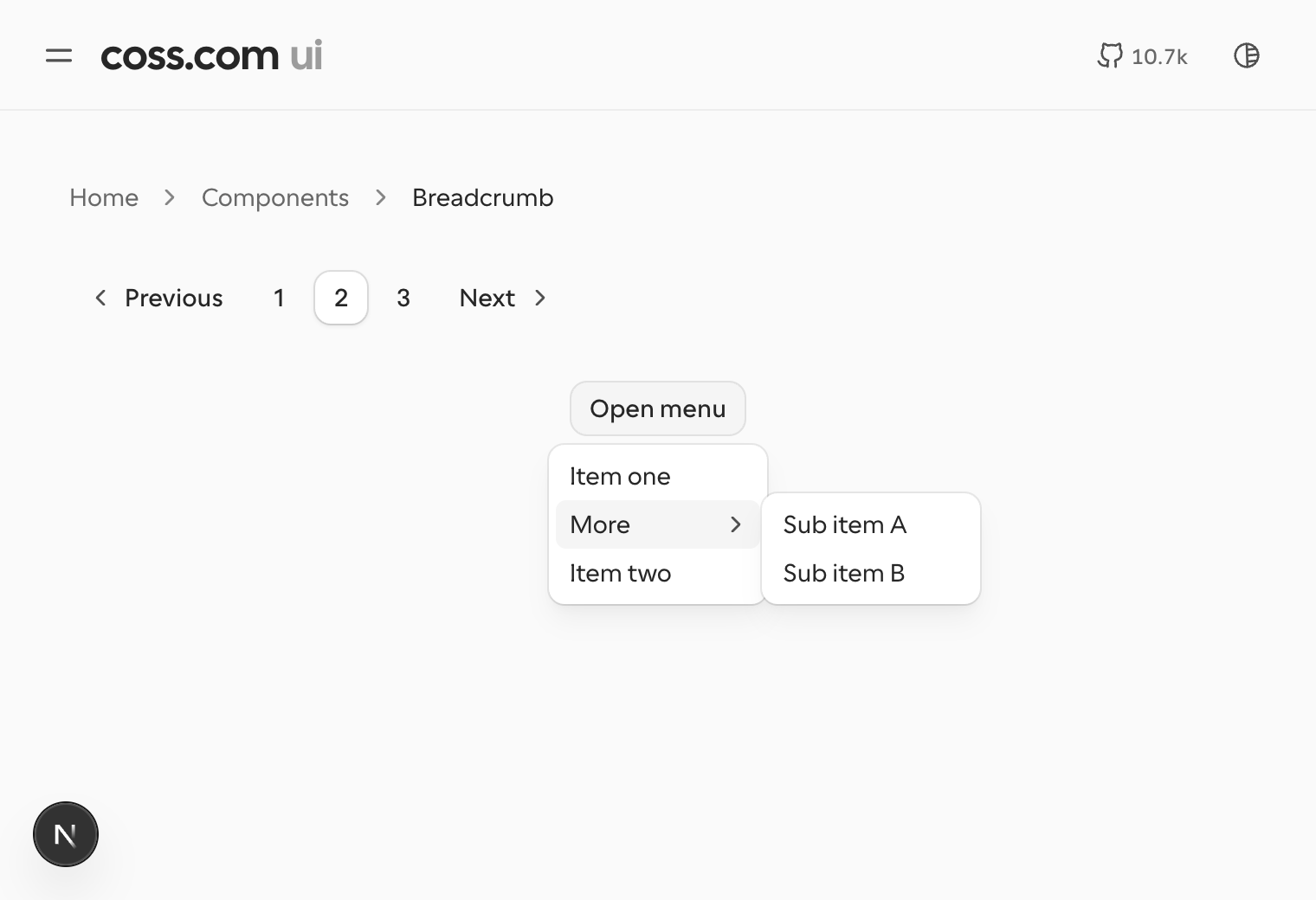

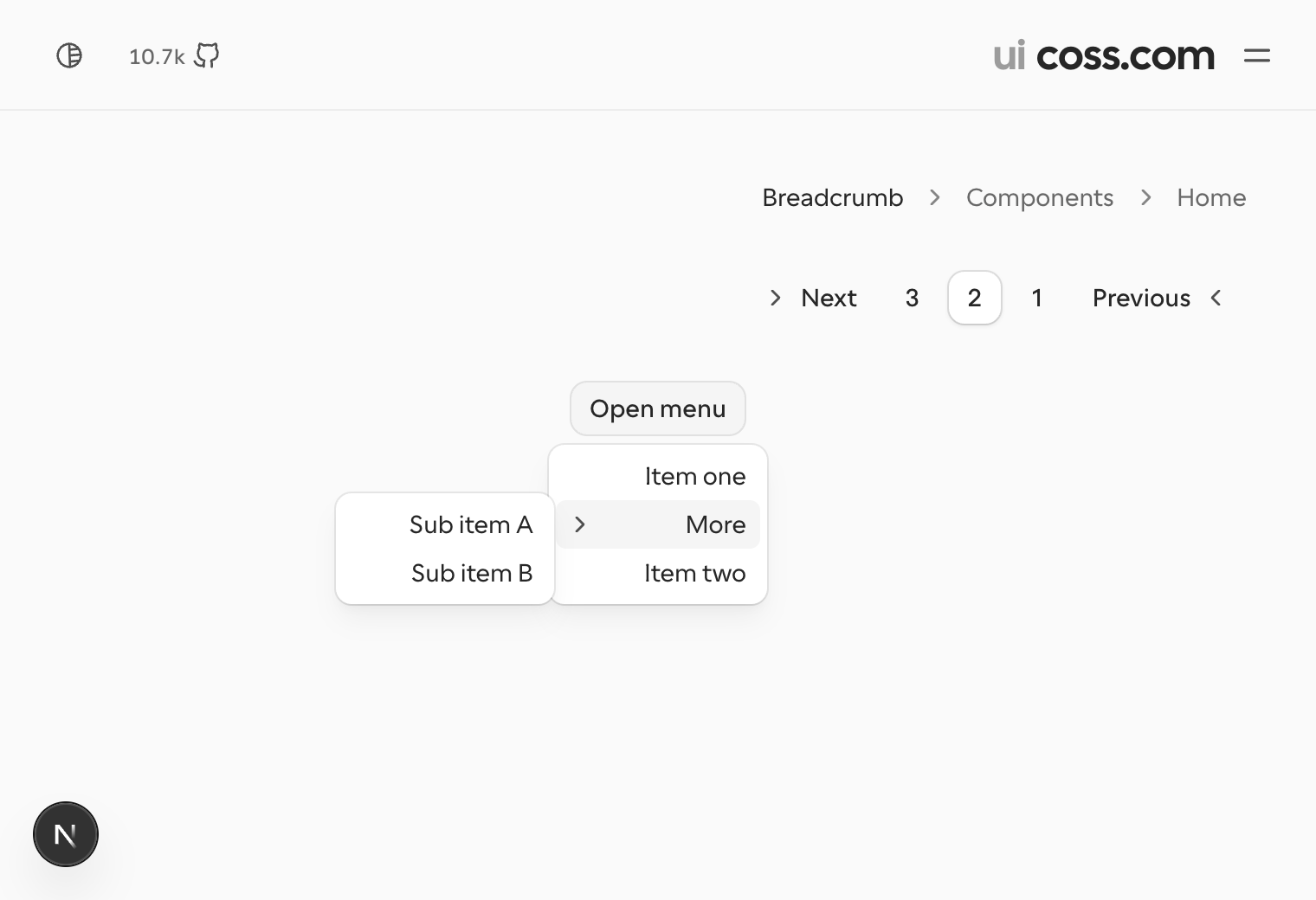

Right to left, before	Right to left, after

Left to right, before	Left to right, after (unchanged)

What to look at in the screenshots: the "More" submenu opens to the left in RTL, and its chevron now points that way. Pagination's Next and Previous arrows, and the breadcrumb arrows, now point the way you move.

---

What happens today

coss already ships DirectionProvider (@coss/ui/base-ui/direction-provider), and Calendar flips its navigation chevrons with rtl:rotate-180. Five other places draw a physical ChevronLeft/ChevronRight and do not flip:

• Menu, ContextMenu, DrawerMenu submenu triggers. MenuSubPopup uses side="inline-end", so in RTL the submenu correctly opens to the left. The trigger's chevron still points right, away from the panel it opens.
• Pagination Previous / Next. In RTL, Previous sits at the right edge, but its chevron points left toward the page numbers. Next has the same problem the other way.
• Breadcrumb separator (the default one). In RTL it points back toward the root, so the trail reads backwards.

To reproduce: render any of these inside <DirectionProvider direction="rtl"> with dir="rtl" on <html>.

What this changes

Adds rtl:rotate-180 to those six icons, the same class Calendar uses. Nothing else changes:

• Icons that have no direction (ChevronsUpDown in Select, Combobox and Autocomplete, and the Accordion ChevronDown) are left as they are.
• BreadcrumbSeparator only flips its default icon. If you pass your own children (a /, for example), it renders untouched.
• LTR is unchanged. The computed rotate is none both before and after.

Files: registry/default/ui/{menu,context-menu,drawer,pagination,breadcrumb}.tsx. Their mirrors in packages/ui/src/components/ and public/r/*.json were regenerated with registry:build and ui:sync. The unrelated p-*.json churn that registry:build produces on main was reverted.

Before / after (RTL)

	Before	After
Submenu trigger (popup opens left)	› More	‹ More
Pagination	› Next … Previous ‹	‹ Next … Previous ›
Breadcrumb	Breadcrumb › Components › Home	Breadcrumb ‹ Components ‹ Home

The screenshots are above.

Checks actually run

• A throwaway page (not committed) rendered Breadcrumb, Pagination and an open Menu with an open submenu inside DirectionProvider, with html[dir] set. A Playwright/Chrome script (repro-shot.mjs) read the computed rotate of each icon and where the submenu sits relative to its trigger:
  • before, RTL: submenu opens left; every chevron rotate: none
  • after, RTL: submenu opens left; every chevron rotate: 180deg
  • LTR, before and after: rotate: none; submenu opens right
• bun run typecheck (apps/ui): passed.
• bun run lint (apps/ui): no findings in the touched files. The warnings it does print are already on main, in use-composer-editor.ts.
• biome check on the touched files: clean. The husky and lint-staged hook ran on commit.
• DrawerMenu was not checked visually. It is the same one-class change on the same icon.

Alongside the open RTL work

This touches different lines from #892 (drawer animations and swipe). The only overlap is the generated public/r/drawer.json, so whichever lands second just needs registry:build re-run. It fits with the docs RTL toggle in #910, too: every chevron changed here is visible from that toggle.

Rebased on main @ 3d8ca28 (#909); typecheck and biome check re-run on the touched files.
