feat(cli): NDJSON render progress event stream for agents (--progress-format)

[mvanhorn]

What

Adds --progress-format <tty|ndjson|none> (default tty) to hyperframes render, plus --progress-fd N.

With ndjson, every producer progress tick becomes one newline-terminated JSON object on stdout (or on an inherited file descriptor via --progress-fd): render.progress ticks plus exactly one terminal render.completed / render.failed event per render. The terminal failure event carries the producer's structured failure contract — failedStage and errorDetails (message, elapsed time, free memory, browser console tail, per-stage timings). Batch rows multiplex into the same stream, each event stamped with its row index. none disables progress output without touching the rest of the human output.

{"type":"render.progress","ts":"2026-09-08T00:49:12.599Z","progress":0.25,"status":"rendering","stage":"Starting frame capture","message":"Starting frame capture","framesRendered":0,"totalFrames":90,"failedStage":null}

Why

hyperframes render only drives a TTY progress bar, and --quiet removes even that. Agents and CI pipelines driving renders need machine-readable progress: is the render moving, what stage is it in, and — on failure — which stage died and why, in a form a program can branch on instead of regex-matching human log text. Remotion exposes this via onProgress callbacks; the producer already has a ProgressCallback contract internally — this PR surfaces it at the CLI boundary as an NDJSON stream.

How

• packages/cli/src/ui/progressNdjson.ts — new ProgressNdjsonWriter, extracted next to progress.ts. It is ProgressCallback-shaped (publish(job, message)), maps the producer's terminal failed/complete status ticks to render.failed/render.completed, and latches after one terminal event per writer so the double-report paths (the producer's own terminal tick via publishRenderFailure + the CLI's handleRenderError) can't duplicate the terminal line. Sink failures (EPIPE when the consumer exits early) disable the stream instead of killing the render — same containment rule as the producer's OrderedRenderEventPublisher.
• render.ts — flags, resolveRenderProgressCallback (precedence: active NDJSON writer → streams even under --quiet, since quiet governs human output; then --quiet/none disable; then the TTY bar), a guaranteed render.completed after a successful executeRenderJob, and a render.failed emission at the top of handleRenderError so throwOnError paths (batch rows) still close the stream.
• render/plan.ts — flag parsing/validation: ndjson is rejected with --docker (the container's output is opaque to the host CLI) and with --json unless --progress-fd moves the stream off stdout; --progress-fd requires ndjson.
• render/execute.ts — one shared sink per command, one writer per render; batch rows each get a writer stamped with row.index. When the stream owns stdout, human output is quiet-suppressed (the rule --batch --json already applies via effectiveQuiet) and stdout-bound console.log/info/debug are rerouted to stderr — caught live: the engine's [BrowserManager] Browser launched line otherwise lands mid-stream.
• Producer untouched — the existing ProgressCallback/OrderedRenderEventPublisher/publishRenderFailure contract already delivers everything the stream needs.
• Docs — docs/reference/cli-render.mdx (event schema, flag interactions) and docs/guides/agents.mdx (the agent recipe), both added to the nav.

Demo

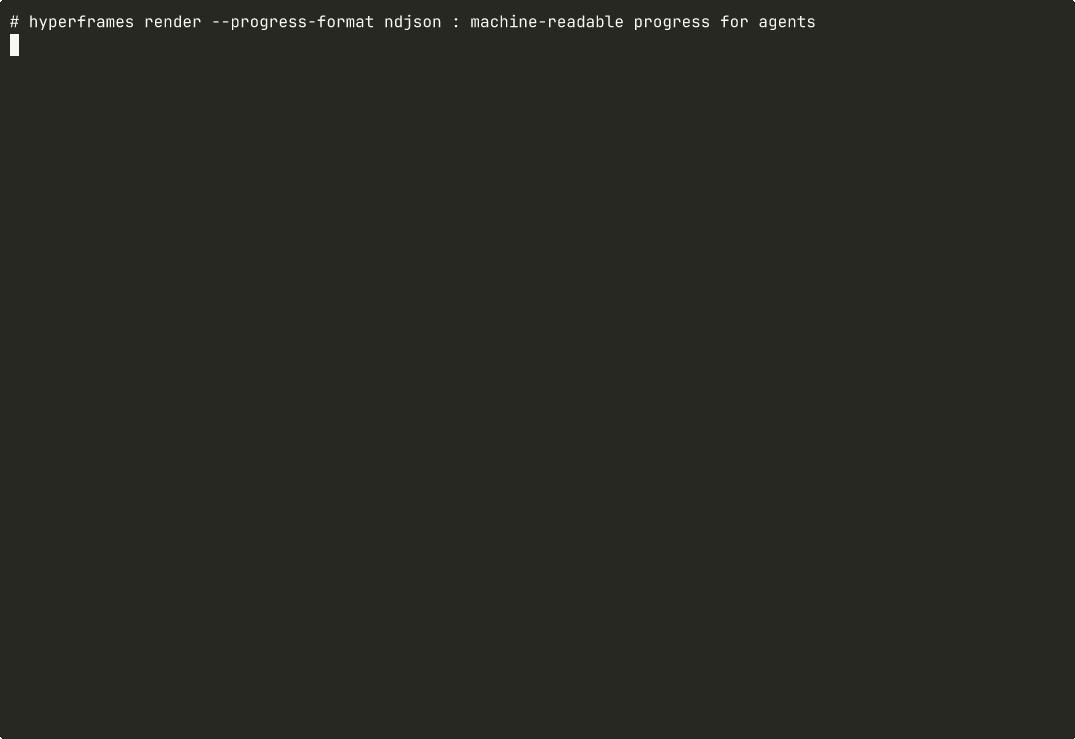

HyperFrames-rendered walkthrough — the demo below is itself a HyperFrames composition (walkthrough/index.html, 25s · 1920×1080 · five scenes: title → NDJSON stream with live progress HUD → jq consumption ending in render.completed → the failure path with failedStage extraction → flag end card). It passed npx hyperframes lint and npx hyperframes check (0 errors, 139/139 WCAG contrast checks) and was rendered with:

npx hyperframes render --quality high --output demo.mp4   # hyperframes 0.8.31

The GIF is derived from that HyperFrames-rendered MP4 (ffmpeg palette two-pass, 960px/12fps).

(MP4 version)

Previous demo (terminal screen recording — superseded by the HyperFrames-rendered walkthrough above)

(MP4 version)

Test plan

• Unit tests added/updated

• Manual testing performed

• Documentation updated (if applicable)

• packages/cli/src/ui/progressNdjson.test.ts (17 tests): event shape, publish ordering, terminal mapping + exactly-one-terminal dedupe, cancelled latch, batch row stamping, progress clamping, EPIPE containment, console redirect, stdout sink.

• packages/cli/src/commands/render.progressNdjson.test.ts (16 tests): resolveRenderProgressCallback precedence with a fake ProgressCallback tick sequence (including quiet interaction and a stray post-terminal tick — no browser required), and createRenderPlan flag validation (--docker/--json/--progress-fd interactions, effectiveQuiet).

• Full CLI suite: 3042 passed | 3 skipped (bunx vitest run in packages/cli).

• bunx oxlint / bunx oxfmt --check clean on all touched files; tsc --noEmit clean for the CLI package.

• Live end-to-end on Linux: success stream (pure JSON on stdout — zero non-JSON lines), --quiet keeps the stream flowing, --progress-fd 3 keeps human output on stdout with events on fd 3, a failing render exits 1 with render.failed carrying failedStage: "Extracting video frames" + errorDetails, and a 2-row --batch stamps row: 0/1 with per-row terminal events.
