What
Add an optional T-shaped cover for the open underside of the HD1370A desk/chair assembly. It follows the existing bottom rim, including the rounded desk corners and square rear corners, and provides four recessed M2 head seats so the outside face can rest flat on a desk.
Related #48, opened before this CAD contribution as requested in
CONTRIBUTING.md.TinyEngineer.f3dincludes a hiddenOPTIONAL_BOTTOM_COVER_HD1370Areference outsidePRINT_LAYOUT; its original SG90 defaults are preserved. This fixed accessory is HD1370A-only and is not included in the multi-servo batch exports.Part documentation and downloads · Rebuild instructions
CAD previews

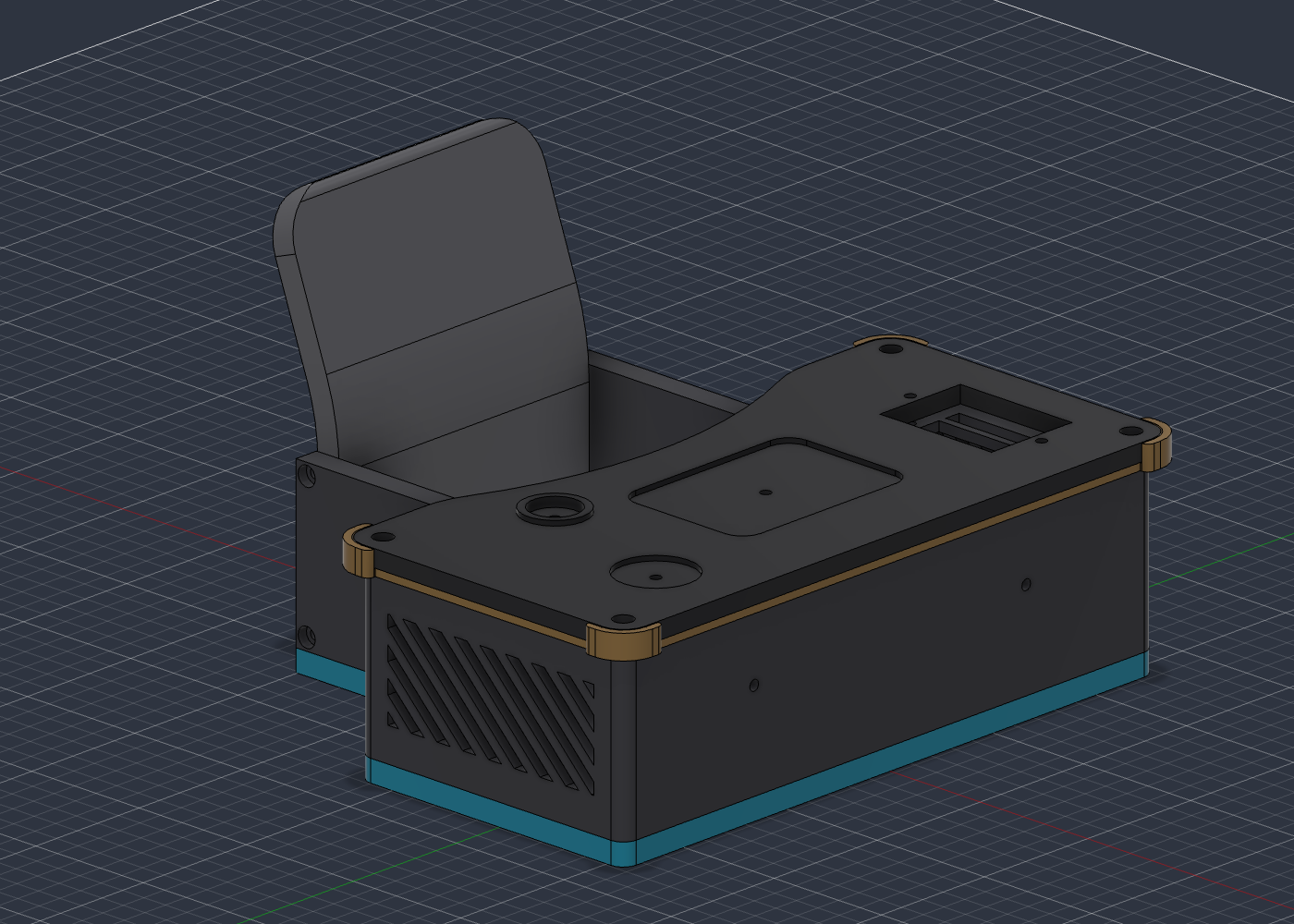

The cover is teal in the aligned assembly below. These are CAD previews, not photographs of a completed print.
Checks
feat(cad): add an optional HD1370A bottom cover..f3d, editable accessory.f3d, and exported.3mf; CERN-OHL-S retained, REUSE/NOTICE updated, andAiEmblem.3mfunchanged.git diff --checkpassed.Upstream CI: run 36215792539 reports
action_requiredwith no jobs executed. Maintainer action is needed; a CI pass is not claimed. Local CAD checks above passed.Hardware status: CAD inspection only; no completed physical print, assembled fit or fastening test is claimed. This PR is a draft pending physical validation. The stock desk has smooth Ø2.1 mm channels in CAD; a machine screw without a nut must grip the actual printed hole. The cover's head seats prevent pull-through, but do not create threads or establish screw retention. The 3.8 mm shaft insertion is not a verified engagement length.
