Chizu _地図

Maps for JavaScript and TypeScript, in English and Japanese.
The world and 32 countries' regions drawn from Natural Earth (public domain), Japan's 47 prefectures among them, with their seas, lakes, rivers, mountains and capitals on request, every country and region named in English and Japanese from kuni 国 and coded by ISO 3166, and the engine around them: framing and zoom, insets, a world that wraps round the date line, quiz distractors, and a callout placer that puts numbered circles in open water with leader lines that never cross. Drawn as SVG text, or dragged and zoomed in any page, as one call. No dependencies.

Open the map → · API reference

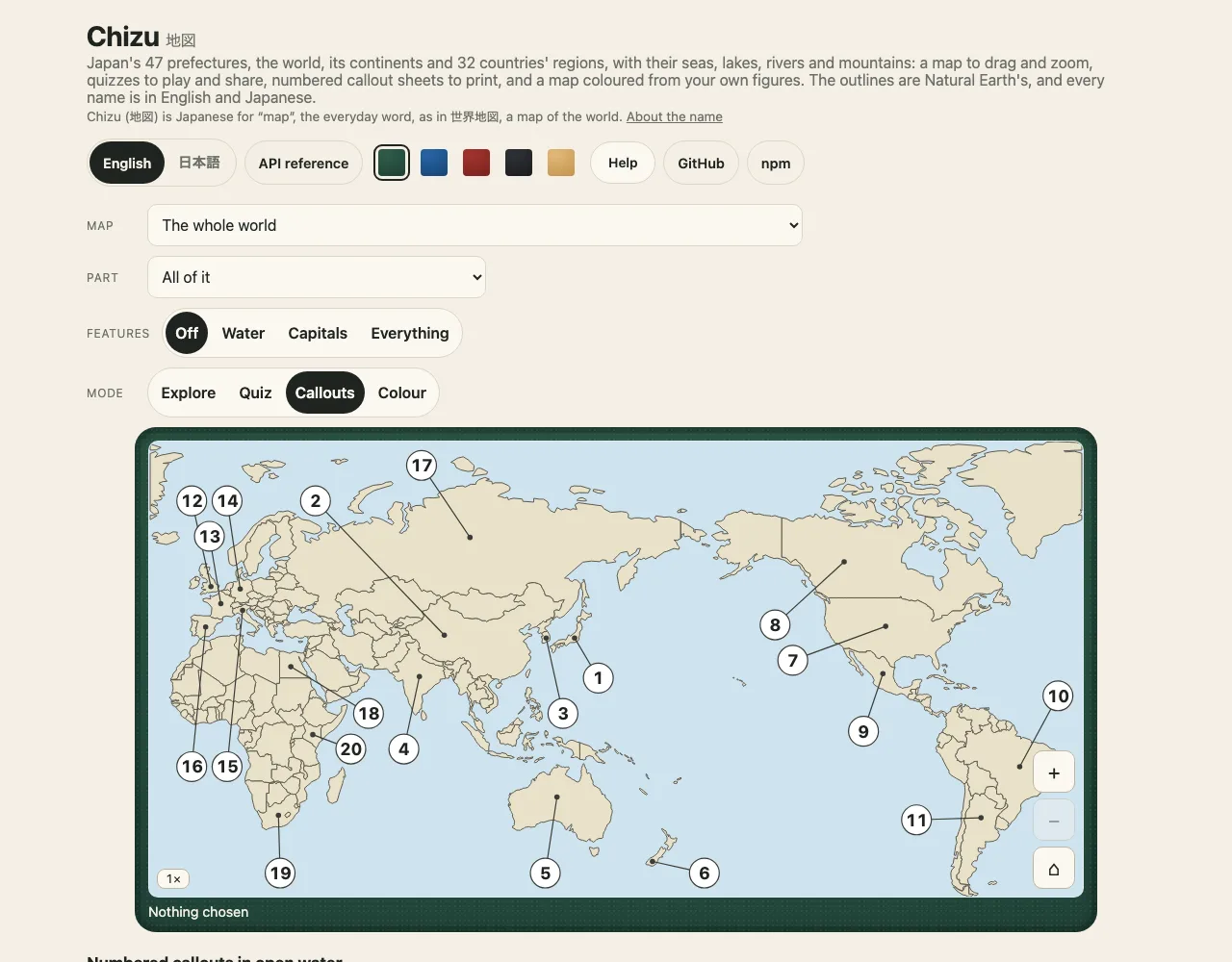

The demo on a desk: the world with twenty countries numbered.

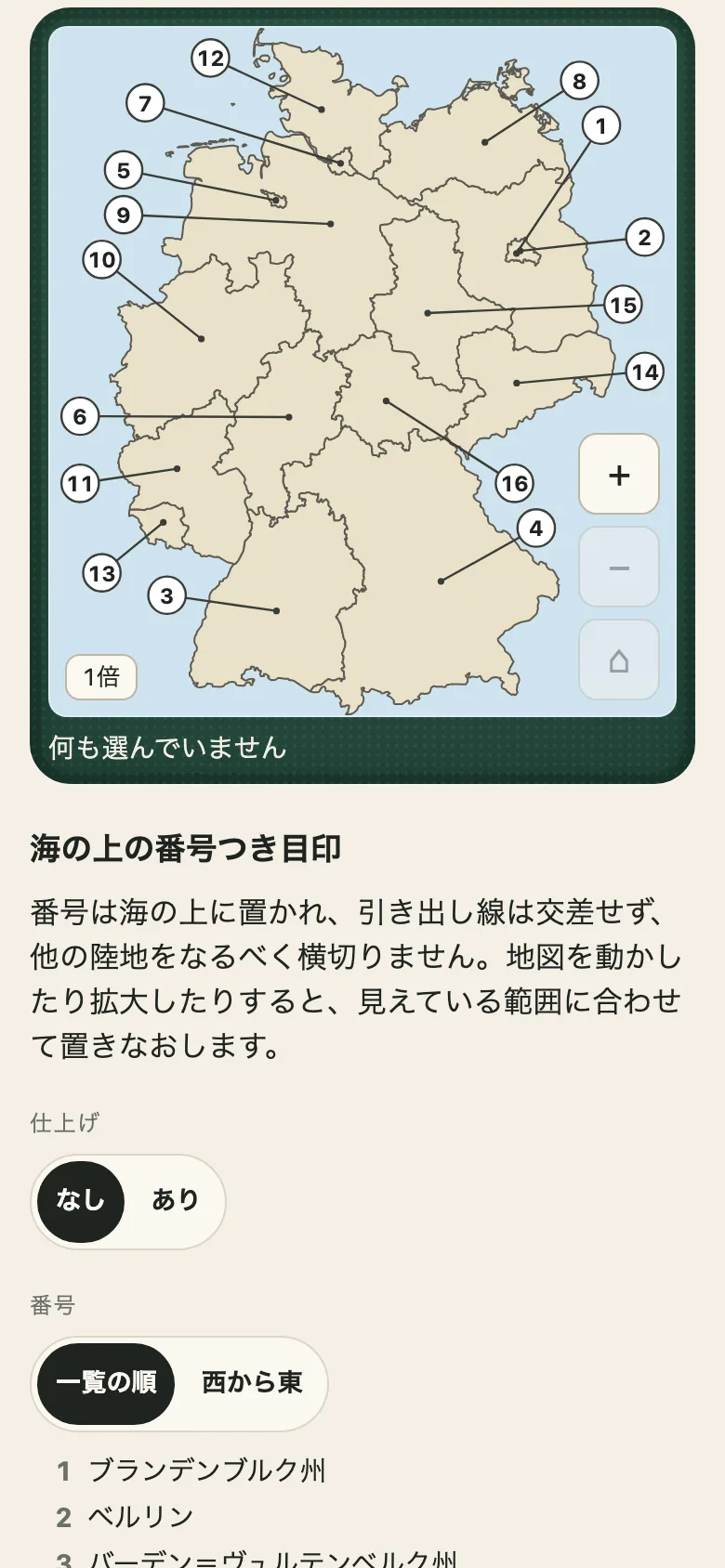

On a phone, in Japanese, in the device's light or dark.

Chizu is a map and the things a person does with one: look for a country, say which country a shape is, put a number on each of twenty places so a printed sheet can name them. It was made for the geography quizzes and study sheets of Itsutsu, and for a Japanese study app by the same author, and taken out of both so that each can import it. It runs in the demo, with nothing to install.

In 30 seconds

npm install @johnmorrisdotca/chizu

import WORLD from "@johnmorrisdotca/chizu/world";
import { drawChizu } from "@johnmorrisdotca/chizu/draw";
import { findQuestion, layoutCallouts, seededRandom } from "@johnmorrisdotca/chizu";

drawChizu(WORLD, { tones: { JP: "selected" }, language: "ja" });   // the world as SVG text, Japan lit, names in Japanese

findQuestion(WORLD, "FR", seededRandom(7));
// { target: "FR", choices: ["BE", "FR", "DE", "CH"], answerIndex: 1 }: France among its look-alikes, the same every time

layoutCallouts(WORLD, { codes: ["JP", "BR", "EG", "AU"], radiusRatio: 0.02 });
// [{ code: "JP", number: 1, start: [455.6, 211], circle: [476.6, 268.1], radius: 20 }, …]

And in a page, a map to drag, zoom and press, by touch and mouse, with the keyboard to move and zoom it:

import WORLD from "@johnmorrisdotca/chizu/world";
import { mountChizu } from "@johnmorrisdotca/chizu/mount";

mountChizu(document.getElementById("map")!, { map: WORLD, onSelect: (code) => console.log(code) });

Who it is for

• Geography quiz and study sites that want "which country is this?" with look-alike wrong answers built in (neighbours first, then the same continent, then whatever is nearest), questions that come out the same from the same seed, and names in English and Japanese.
• Printable sheets and worksheets, where a map has to be labelled with numbers that sit in the sea, never on the land, with leader lines that do not cross each other and cross as little other land as they can.
• A site that pins things on a map: members' home countries, battles, photographs. projectPoint puts a longitude and latitude on the world's canvas, and the world pans round without stopping.
• Anyone who needs country outlines and names in Japanese and wants them as plain data, rebuilt from a public-domain source by a script they can read, with the source and its version written beside them.

Features

• The world, and 238 countries each on its own. One canvas for the world, Miller's projection centred on 155°E (so Japan and the whole Pacific are in the middle, the way a Japanese classroom's wall map is drawn). Each country alone is a map of its own, from the 1:50m outlines, and from the 1:10m ones for the small ones, so that Singapore and Malta are shapes and not hexagons.
• Japan's 47 prefectures, from Natural Earth's admin-1 file, framed as a Japanese school atlas frames them: Okinawa and the Amami Islands in boxes in the Sea of Japan, Tokyo's Ogasawara Islands in a box of their own, each prefecture named and read (東京都, とうきょうと) and grouped in its region (Kanto, Kyushu).
• 32 countries' regions, each its own file: the prefectures of Japan, the states of the United States, Germany and Brazil, the provinces of Canada, the départements of France, the counties of Ireland, and on to Vietnam. Names in Japanese for nearly every one.
• ISO 3166-2 codes on the regions (JP-13, CA-ON, US-TX), 1,335 of the 1,342, joined at build time from kuni 国, so a table of figures keyed by ISO code colours the map; the 7 without one are listed below with the reason.
• Seas, lakes, rivers, mountains and capitals, a layer each map turns on (features: ["water"]): the oceans, seas, bays and straits on its coasts, the lakes and rivers on its land, its deserts, ranges and peaks from Natural Earth's physical vectors, and its capitals from kuni, named in English and Japanese (Natural Earth's names, else Wikidata's) and read in kana; searched by name, framed, chosen, asked about and numbered like any place. Each map's are a file of their own, 29 kB for Japan.
• Names in English and Japanese for every country, with the everyday short name (アメリカ for アメリカ合衆国) and the reading in kana, read from kuni 国 at build time so the two packages never name a place two ways. The table of them, with the continents and subregions, is its own entry, 52 kB (10 kB gzipped), with no outlines. Nothing of kuni's is imported at run time: Chizu still depends on nothing.
• Framing and zoom in ten steps, 1× to 10×, the lines as thin at 10× as at 1×, a window on a region, one tight on a shape, a square for an icon, and a fit for a group of regions. A region drawn in a box (Alaska, Hawaii, Okinawa) is framed where it is drawn, not out in the Pacific, and a prefecture whose far islands are boxed (Tokyo, Kagoshima) is framed on the part left in place.
• A world that goes round. East and west never stop on the world: the canvas is drawn again either side of itself wherever the window overhangs.
• A callout placer. Numbered circles in the water between and around the regions, no two leaders crossing, each crossing as little land as it can, with a slower pass for a printed sheet. The same arrangement every time.
• Quiz distractors. The wrong answers for "which one is this?", tempting for a reason, the same for the same seed.
• Pasted names to places. A list somebody typed (English, Japanese, short names, readings) becomes the regions it names, in the order written, with what matched nothing said back.
• Longitude and latitude to the canvas, and back, for the world and for each country alone, held to d3-geo's own to a hundredth of a unit.
• Drawn as SVG text in an entry of its own, with tones for right and wrong, a colour of your own for any region, labels, insets in dashed frames and numbered callouts, for a server, an email, a build step or innerHTML.
• Dragged and zoomed in any page: drag to move, buttons, Ctrl and the wheel or a pinch to zoom, arrow keys, a press to choose; with the words in English and Japanese for a screen reader.
• No dependencies, no network requests, and nothing stored outside the page it is in.

What's in it

Each picture is the real map, drawn by the package and taken from the demo with pnpm screenshots:readme, in light and dark.

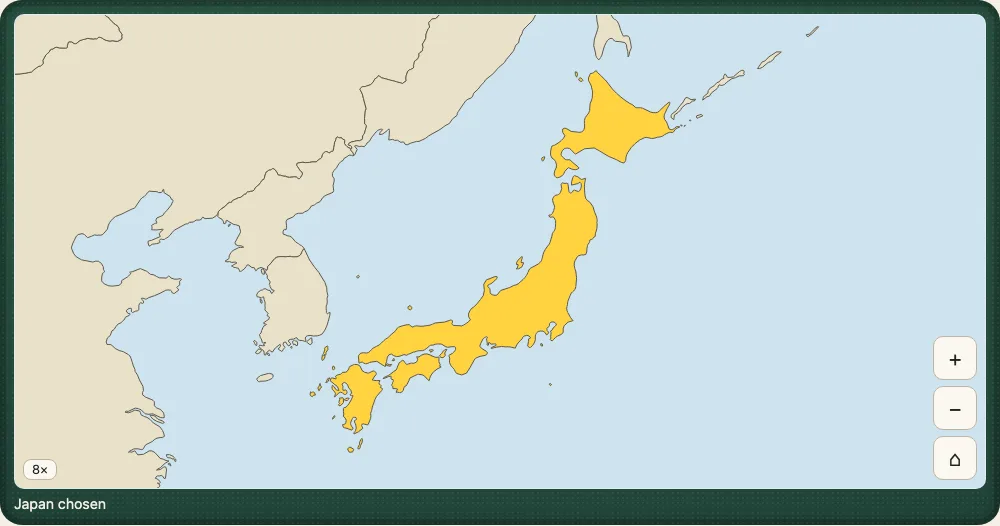

Explore. The world is drawn round 155°E, so Japan and the Pacific are in the middle; press a country to choose it.	Callouts. Germany's sixteen states: every circle is in open water or the margin, and no two leaders cross.

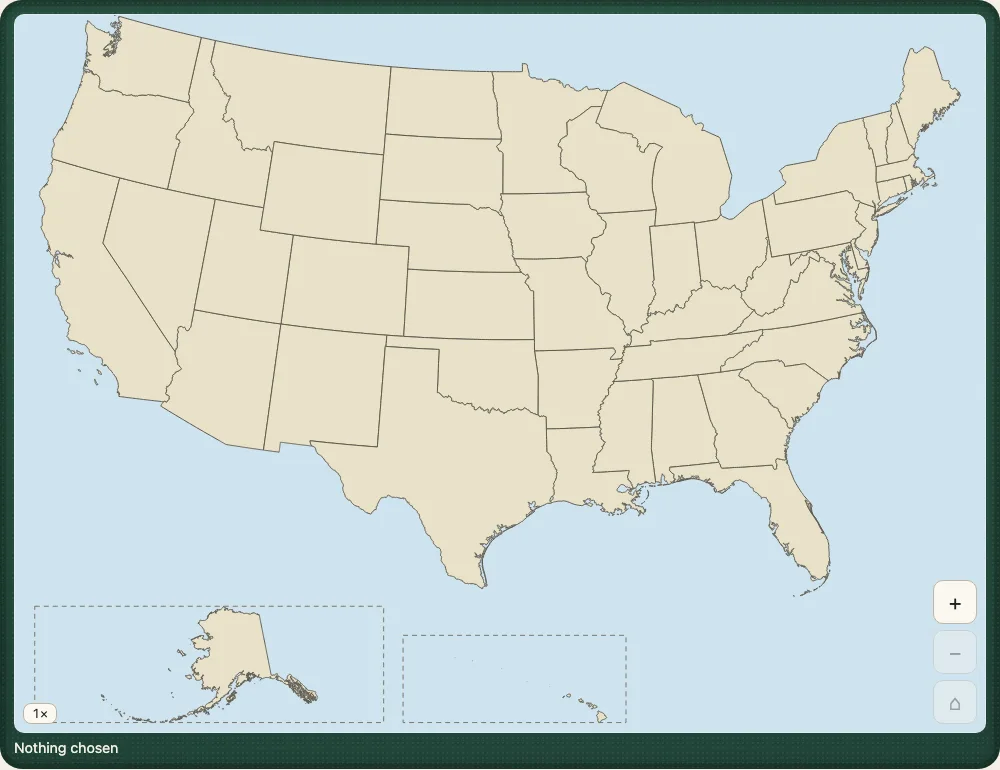

Insets. Alaska and Hawaii are drawn in boxes of their own, and everything that frames or numbers a map finds a region where it is drawn.	One country alone, with its seas, lakes and rivers turned on. Each of 238 countries is a map of its own.

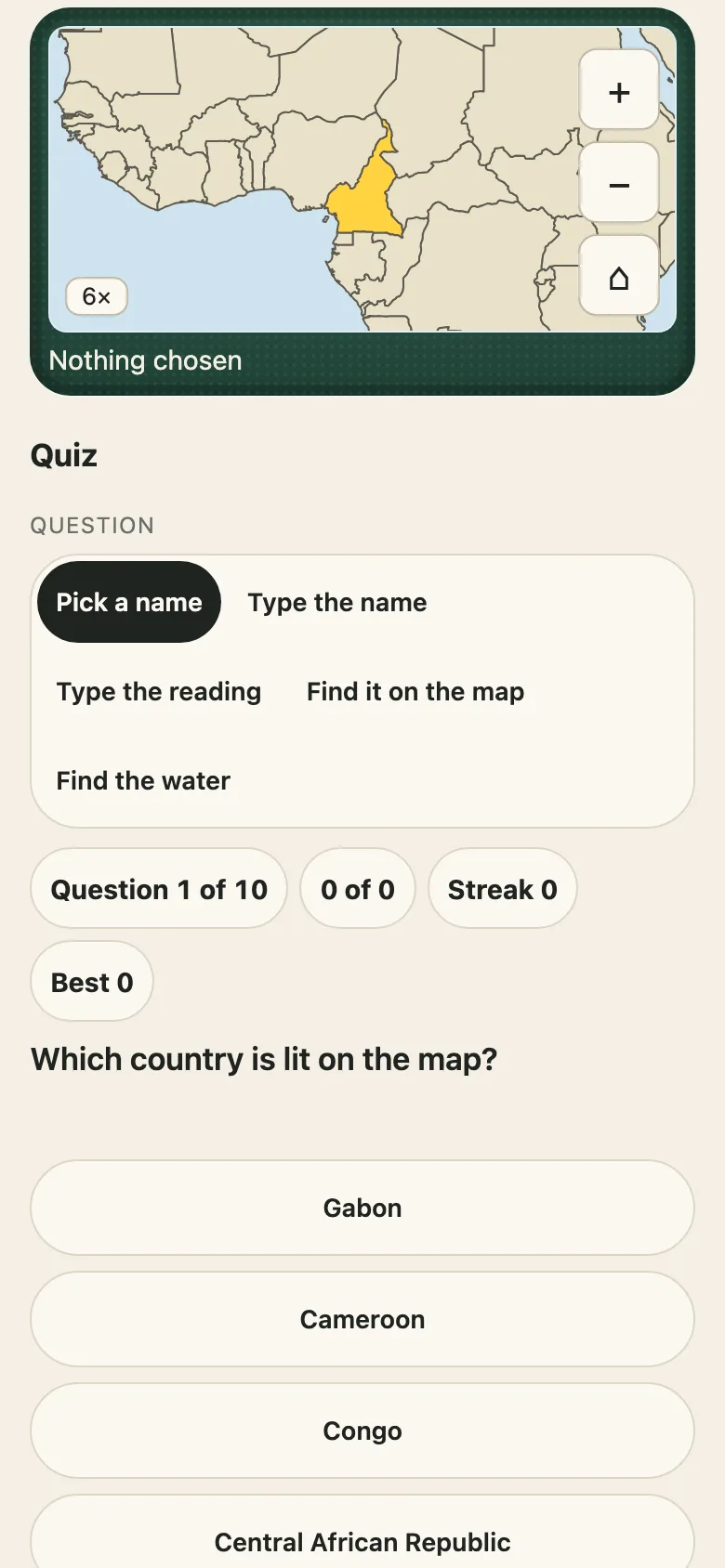

Quiz. Rounds of ten from a seed, so a shared link asks the same ten; pick, type, read or find.	Japan. The 47 prefectures coloured by region (regionGroups), the far islands in boxes each fills.

Use it in your project

Chizu is five things, each usable without the others: the engine (framing, zoom, insets, callouts, distractors, pasted names; plain functions over plain data), the maps (the world, a country alone, a country's regions: data, one file each), the drawing (SVG text), the page (a mounted map) and the names (every country in both languages, with no outlines). The table under API says which entry holds which.

Install

npm install @johnmorrisdotca/chizu
# or: pnpm add @johnmorrisdotca/chizu
# or: yarn add @johnmorrisdotca/chizu

It is ES modules only, with its types included, and needs Node 22 or later when it runs outside a browser. A page with no bundler imports from a CDN (@1 is the major version): see the first example under Examples.

1. The engine alone, on a server

import { layoutCallouts, regionBox, zoomBox, zoomToFit } from "@johnmorrisdotca/chizu";
import { loadDivisions } from "@johnmorrisdotca/chizu/load";

const germany = (await loadDivisions("de"))!;               // 16 states, one file, fetched when asked for
regionBox(germany, "BY", 1.5);                              // a window tight on Bavaria, in a frame 1.5 times as wide as tall
zoomToFit(germany, ["BY", "BW"]);                           // { zoom: 1, centre: { x: 518.8, y: 868.2 } }
layoutCallouts(germany, { codes: germany.regions.map((r) => r.code) });   // sixteen numbered circles for a sheet

Every function takes a map and returns new values; none changes what it was given, and none needs a browser.

2. One map in a page

import { mountChizu } from "@johnmorrisdotca/chizu/mount";
import { loadCountry } from "@johnmorrisdotca/chizu/load";

const map = await loadCountry("jp");                        // Japan alone, from 1:50m outlines
const mount = mountChizu(document.getElementById("map")!, { map: map!, language: "ja" });
mount.zoomBy(1);

3. A bundler, and a framework

Each country's map is its own file and its own dynamic import (@johnmorrisdotca/chizu/load holds one import() for each), so a bundler makes a chunk of every one and a page fetches only the one it draws. The world is 170 kB (61 kB gzipped). A map is a plain object with no functions in it, so it serialises, caches and crosses a worker boundary as it is.

What a developer gets

• Plain data. A ChizuMap is { id, kind, name, nameJa, width, height, wraps, projection, insets, regions }, and a region is { code, name, nameJa, reading, group, path, bbox, centroid, neighbors }. Your own map (a floor plan, a game board) is the same shape, and everything in the engine works on it.
• The look comes from custom properties. The drawing and the mounted map are coloured by --cz-* and --czm-* properties, light and dark, and nothing is branded.
• TypeScript types for all of it. Every export has a doc comment, so an editor shows it as you type.

In a framework

A map is drawn by one call that takes an element and hands back an object with destroy(): make the element, mount into it when the page has it, and destroy the mount when the page lets it go. docs/frameworks.md has it in React, Vue, Svelte and Angular.

Examples

Each example is a whole recipe: copy it and it works. They are run in CI against the built package (pnpm test:readme), so none of them is a guess, and the output shown is what they print.

A map in a page, with no bundler

Save this as a file and open it: a world you can drag, zoom with the buttons, Ctrl and the wheel or a pinch, and press. The two modules come from a CDN; @1 is the major version.

<!doctype html>
<meta charset="utf-8">
<title>A map</title>
<div id="map" style="height: 70vh"></div>
<script type="module">
  import WORLD from "https://cdn.jsdelivr.net/npm/@johnmorrisdotca/chizu@1/dist/world-entry.js";
  import { mountChizu } from "https://cdn.jsdelivr.net/npm/@johnmorrisdotca/chizu@1/dist/mount-entry.js";

  const map = mountChizu(document.getElementById("map"), {
    map: WORLD,
    language: "en",
    onSelect: (code) => console.log("chosen:", code), // "JP", or null when the same place is pressed again
  });
  map.select("JP"); // choose Japan and zoom to it
</script>

The world as an image, on a server

drawChizu is a string of SVG, so a server, a build step or an email can make a map with no browser. Here Japan is lit, the names are in Japanese, and the style travels inside the image.

import WORLD from "@johnmorrisdotca/chizu/world";
import { drawChizu } from "@johnmorrisdotca/chizu/draw";

const svg = drawChizu(WORLD, { tones: { JP: "selected" }, language: "ja", style: true });
console.log(svg.startsWith("<svg"), svg.includes('data-code="JP"'), svg.length > 100_000);
// await writeFile("japan.svg", svg);   // or hand it to a response, or put it in innerHTML

true true true

Frame a region and fit a group

A window is a box in the map's own units. regionBox is tight on one shape, zoomToFit finds the closest of the ten zoom steps that holds a group, and loadDivisions fetches one country's regions only when they are asked for.

import { regionBox, zoomToFit } from "@johnmorrisdotca/chizu";
import { loadDivisions } from "@johnmorrisdotca/chizu/load";

const germany = (await loadDivisions("de"))!;   // 16 states, one file
const bavaria = regionBox(germany, "BY", 1.5);   // a window tight on Bavaria, 1.5 times as wide as tall
console.log(Math.round(bavaria.width), Math.round(bavaria.height));
console.log(zoomToFit(germany, ["BY", "BW"]));   // the closest step that holds both south-western states

834 556
{ zoom: 1, centre: { x: 518.82, y: 868.1949999999999 } }

Which country is this?

findQuestion makes a question: the target and three look-alikes, in an order the seed fixes, so a quiz can be replayed and a server can check an answer without keeping the question.

import WORLD from "@johnmorrisdotca/chizu/world";
import { findQuestion, pickDistractors, seededRandom } from "@johnmorrisdotca/chizu";

const question = findQuestion(WORLD, "FR", seededRandom(7))!;
console.log(question);
console.log(question.choices[question.answerIndex] === question.target);
console.log(pickDistractors(WORLD, "DE", { count: 3 }));   // neighbours first

{ target: 'FR', choices: [ 'BE', 'FR', 'DE', 'CH' ], answerIndex: 1 }
true
[ 'LU', 'NL', 'AT' ]

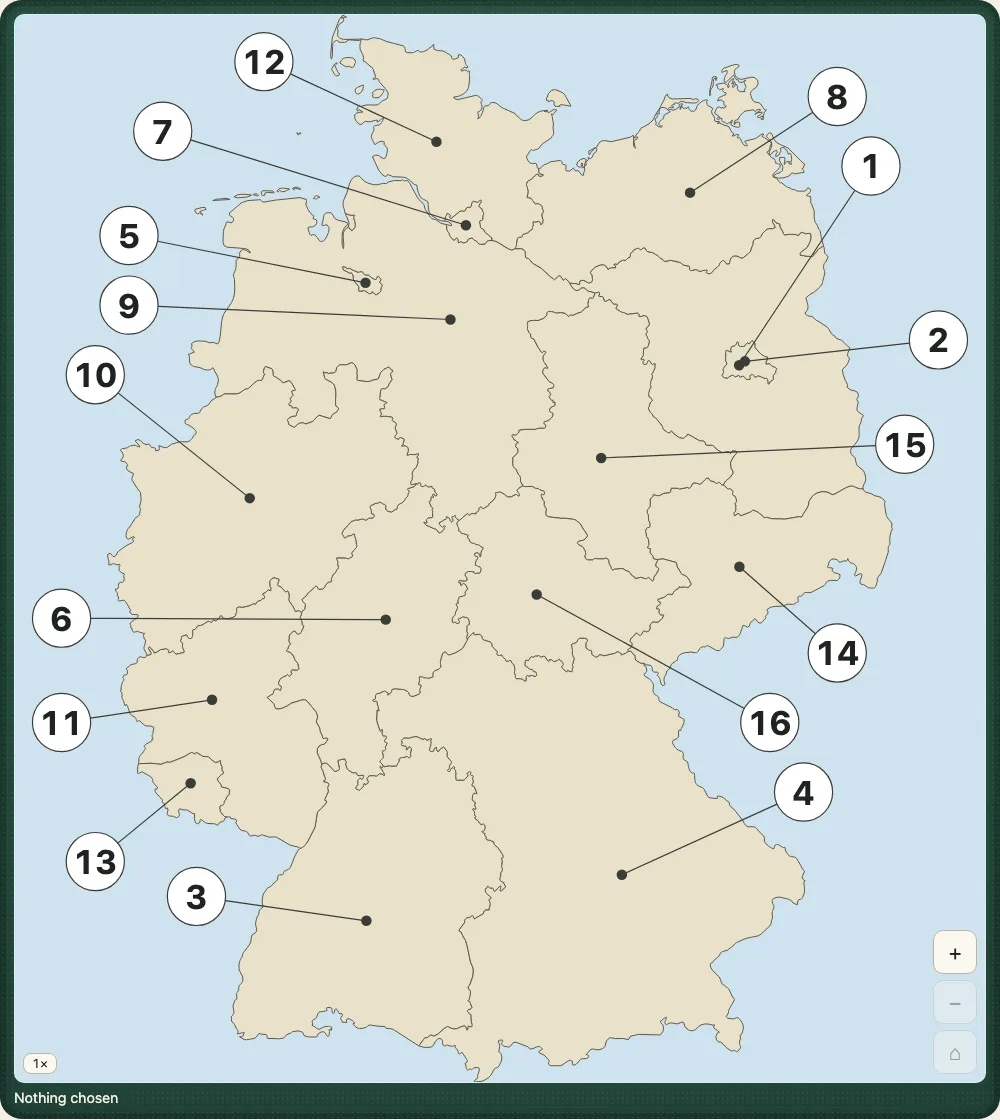

Number twenty places for a printed sheet

layoutCallouts puts a numbered circle for each place in open water, with a leader line from the circle to its place and no two leaders crossing. drawChizu draws them, so the sheet is one string.

import WORLD from "@johnmorrisdotca/chizu/world";
import { drawChizu } from "@johnmorrisdotca/chizu/draw";
import { layoutCallouts } from "@johnmorrisdotca/chizu";

const codes = ["JP", "CN", "KR", "IN", "AU", "NZ", "US", "CA", "MX", "BR", "AR", "GB", "FR", "DE", "IT", "ES", "RU", "EG", "ZA", "KE"];
const spots = layoutCallouts(WORLD, { codes, radiusRatio: 0.016 });
console.log(spots.length, spots[0]!.code, spots[0]!.number, spots[19]!.code, spots[19]!.number);
const sheet = drawChizu(WORLD, { callouts: { codes, radiusRatio: 0.016 }, language: "en", style: true });
console.log(sheet.includes("cz-callout"));

20 JP 1 KE 20
true

Names pasted from a spreadsheet

A list somebody typed becomes the places it names, in the order written, and what matched nothing is said back and never guessed at.

import WORLD from "@johnmorrisdotca/chizu/world";
import { placesFromText } from "@johnmorrisdotca/chizu";

console.log(placesFromText("Japan, フランス\nBrazil, Narnia", WORLD.regions));

{ codes: [ 'JP', 'FR', 'BR' ], missing: [ 'Narnia' ] }

Seas, lakes and rivers

loadFeatures fetches a map's named features; findFeatures finds one by English, Japanese or kana; drawChizu draws the water and lights it; and featureMap makes the layer a map, so a quiz asks "which sea is this?".

import WORLD from "@johnmorrisdotca/chizu/world";
import { drawChizu } from "@johnmorrisdotca/chizu/draw";
import { loadFeatures } from "@johnmorrisdotca/chizu/load";
import { featureMap, findFeatures, findQuestion, seededRandom } from "@johnmorrisdotca/chizu";

const layer = (await loadFeatures("world"))!;
const [caspian] = findFeatures(layer.features, "かすぴ");
console.log(caspian!.code, caspian!.name, caspian!.kind, caspian!.reading);
const svg = drawChizu(WORLD, { features: ["water"], featureLayer: layer, tones: { [caspian!.code]: "selected" } });
console.log(svg.includes('data-tone="selected"'), findQuestion(featureMap(WORLD, layer, ["water"]), caspian!.code, seededRandom(2))!.choices.length);

Q5484 Caspian Sea sea かすぴかい
true 4

Pin a member's town on the world

projectPoint turns a longitude and latitude into a point on the map's canvas, and unprojectPoint goes back.

import WORLD from "@johnmorrisdotca/chizu/world";
import { projectPoint, unprojectPoint } from "@johnmorrisdotca/chizu";

const tokyo = projectPoint(WORLD, 139.69, 35.69)!;                 // [x, y] on the canvas
console.log(tokyo.map((n) => Math.round(n * 10) / 10));            // [457.5, 212.5]
console.log(unprojectPoint(WORLD, 456, 200)!.map((n) => Math.round(n * 10) / 10));

[ 457.5, 212.5 ]
[ 139.2, 39.6 ]

Every country's name, in two languages

The table of countries has no outlines, so a page that only needs names loads 52 kB (10 kB gzipped). nameOf picks the language; reading is the kana.

import { CHIZU_COUNTRIES, countryByCode } from "@johnmorrisdotca/chizu/names";

const japan = countryByCode("JP")!;
console.log(japan.name, japan.nameJa, japan.reading, japan.group);
console.log(CHIZU_COUNTRIES.length, CHIZU_COUNTRIES.filter((country) => country.hasDivisions).length);

Japan 日本 にほん Asia
238 32

A look of your own

The drawing and the mounted map are coloured by custom properties, so a page changes them in CSS and nothing in JavaScript. This one is a map of a night sky.

.chizu {
  --cz-sea: #101a2e;
  --cz-land: #2c3e5c;
  --cz-line: #6d86b0;
  --cz-selected: #ffd23f;
  --cz-ink: #e8eefc;
}
.chizu-map { --czm-accent: #ffd23f; }

A map you steer from your own code

A mounted map is an object: choose, show, tone and count, and listen for every move.

import WORLD from "@johnmorrisdotca/chizu/world";
import { mountChizu } from "@johnmorrisdotca/chizu/mount";

const mount = mountChizu(document.querySelector<HTMLElement>("#map")!, {
  map: WORLD,
  selectable: false,                                  // a quiz: looked at, not chosen
  onView: (view) => console.log(view.zoom, view.box),
});
mount.show(["FR", "DE"]);                             // zoom to a pair
mount.set({ tones: { FR: "correct", DE: "wrong" } }); // colour them
mount.zoomBy(1);                                      // one step in
mount.reset();                                        // the whole map again
mount.destroy();                                      // when the page lets it go

A country's regions, one at a time

Every country is its own file, so a page that draws one country never loads another. loadCountry is a country alone and loadDivisions is its regions.

import { loadCountry, loadDivisions, COUNTRY_CODES, DIVISIONS_CODES } from "@johnmorrisdotca/chizu/load";

const france = (await loadDivisions("fr"))!;
console.log(france.name, france.regions.length, france.regions[0]!.name);
const ireland = (await loadCountry("ie"))!;
console.log(ireland.id, ireland.kind, COUNTRY_CODES.length, DIVISIONS_CODES.length);

France 96 Ain
country-ie country 238 32

Maps

Map	Entry	What it is	Size
The world	@johnmorrisdotca/chizu/world	173 countries, Natural Earth at 1:110m	170 kB
The world drawn finer	loadWorldDetail() from @johnmorrisdotca/chizu/load	the same 173 countries on the same canvas, at 1:50m, for a map zoomed in (mountChizu's detail)	1.3 MB, fetched only when asked for
A country alone	@johnmorrisdotca/chizu/countries/<code> or loadCountry("<code>")	238 countries and territories at 1:50m (1:10m under 60,000 km²), on a canvas of their own whose longer side is 1,000	16 kB for Japan, 157 kB for Canada
A country's regions	@johnmorrisdotca/chizu/divisions/<code> or loadDivisions("<code>")	32 countries, Natural Earth admin-1 at 1:10m	203 kB for Germany, 1.8 MB for Russia
Japan's prefectures	divisions/jp or loadDivisions("jp")	47 prefectures, Natural Earth admin-1 at 1:10m, with Okinawa and the outlying islands in boxes	186 kB
A map's seas, lakes, rivers, mountains and capitals	@johnmorrisdotca/chizu/features/<map> or loadFeatures("<map id>")	268 maps' named features on their own canvases: docs/features.md	203 kB for the world, 29 kB for Japan's prefectures

The codes are ISO 3166-1 alpha-2, in lower case in a file's name (fr), and Natural Earth's own three letters for the few places that have none. CHIZU_COUNTRIES (from @johnmorrisdotca/chizu/names) lists every country with its names, and says which have a map of their own regions.

The 32 countries with regions are Argentina, Australia, Austria, Belgium, Brazil, Canada, Chile, China, Colombia, France, Germany, Ireland, Italy, Japan, Malaysia, Mexico, the Netherlands, New Zealand, Norway, Peru, the Philippines, Poland, Russia, South Korea, Spain, Sweden, Switzerland, Taiwan, Thailand, the United Kingdom, the United States and Vietnam.

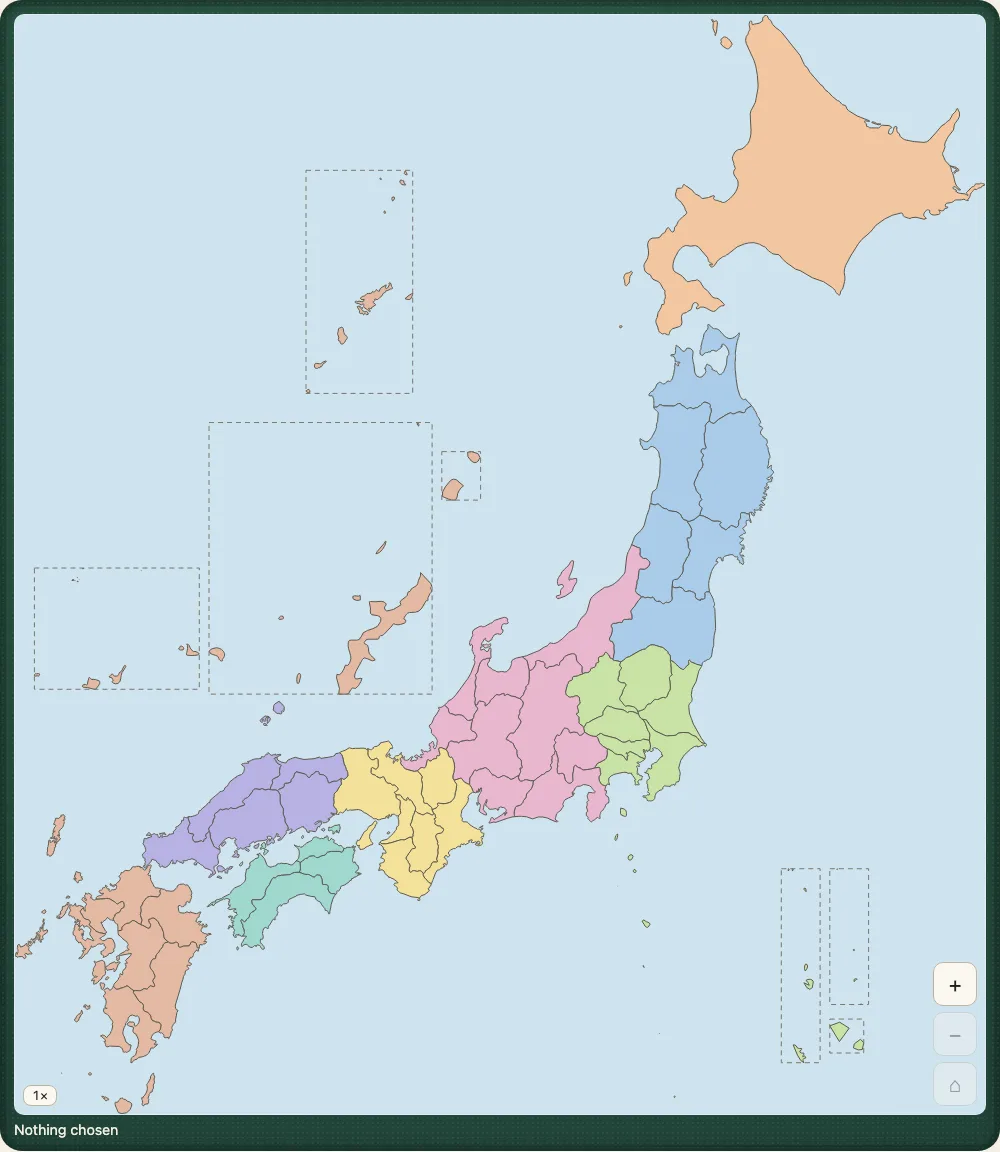

Japan. The 47 prefectures are numbered as Japan numbers them, "1" (Hokkaidō) to "47" (Okinawa), with iso the ISO 3166-2 code (JP-01); group is the region a Japanese school teaches (Hokkaido, Tohoku, Kanto, Chubu, Kinki, Chugoku, Shikoku, Kyushu, with Okinawa in Kyushu), Kinki carrying Kansai (関西) in groupAliases; the names in both languages and the readings (とうきょうと) are kuni's. The mainland is drawn in Mercator 1,000 across. The islands far from it are drawn in boxes, each holding its own part of the sea (within) at a size it can be seen at: Okinawa's main islands large in the Sea of Japan, the Sakishima and Daito Islands beside them, Kagoshima's Tokara and Amami Islands (which Natural Earth draws inside Okinawa and the build gives back) north-east of them, and Tokyo's Ogasawara Islands, Volcano Islands and Minamitorishima at the bottom right.

What a country alone leaves out. A country is drawn with its largest piece and every piece within 9° of it, so France is the mainland and Corsica, not French Guiana, Réunion and the Pacific (they are on the world map). The United States is the lower forty-eight and Alaska.

The world leaves out Antarctica, the French Southern Lands, Northern Cyprus and Somaliland, and at 1:110m the smallest countries are left off it: 173 are drawn, and every one of the 238 is in its own file.

The canvas and the codes

A map's canvas is 0 0 width height, viewBox says so, and a region's path is M x,y L x,y … Z with one piece for each part (an island is a piece), to two decimals. A region's code is its ISO 3166-1 alpha-2 code on the world, and on a country's regions the code Natural Earth gives (a postal code, the ISO 3166-2 part, or a number), or the prefecture number in Japan. On a country's regions, iso is the full ISO 3166-2 code (CA-ON), the one kuni has: see ISO codes below. neighbors lists the regions that share a border point with it. group is the continent on the world and the larger part of the country on a map of regions, and is what quiz distractors use.

ISO codes

Every region of a country carries iso, its ISO 3166-2 code from kuni, the current one where Natural Earth's is out of date (Paris is FR-75C, Silesia PL-24); where Natural Earth draws one ISO subdivision as several regions, each carries the code of the one it lies in (County Dublin's four councils are all IE-D). Norway's counties, drawn as they were before 2020, carry the codes of the counties of 2024 they lie in. 7 of the 1,342 regions have no code: a county split since (Northamptonshire), a territory with none (Jervis Bay), and a few more. docs/iso-codes.md says how each code is chosen and lists every one with the reason.

A region that is exactly one ISO subdivision takes kuni's names, so a map and a form name a place alike. The rest keep Natural Earth's names, and no two regions of one map share a name in either language. docs/names.md lists every name the map prints that is not kuni's, with the reason.

Framing a map

A window is a MapBox, { x, y, width, height } in the map's units, which is what an SVG viewBox says (boxToViewBox).

import { focusBox, regionBox, shapeGlyphBox, zoomBox, zoomToFit, MAP_ZOOM_LEVELS } from "@johnmorrisdotca/chizu";

zoomBox(map, 3, { x: 500, y: 300 });          // the window three times in, about that point, kept on the map
zoomBox(WORLD, 3, { x: 1200, y: 244 });       // on the world it is not kept east and west: it goes round
focusBox(map, ["BY", "BW"]);                  // a window that frames these regions with room round them
regionBox(map, "BY", 2.5);                    // tight on one shape, in a frame 2.5 times as wide as tall
shapeGlyphBox(region.bbox);                   // a square every shape fills, for an icon
zoomToFit(map, ["NY", "PA", "NJ"]);           // { zoom, centre }: the closest step that holds them all
MAP_ZOOM_LEVELS;                              // [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]

Insets. A map's insets list the regions it draws in a box of its own, with the box. Alaska and Hawaii are in two boxes under the lower forty-eight on the United States' map, and an inset may hold only a region's outlying islands (outlyingBelow) and magnify them (magnify). Everything that frames, outlines or numbers a map reads the list, so a region is found where it is drawn.

The world goes round. wrapOffsets(box, width) says how many copies of the canvas a window sees, wrapIntoBox finds the copy of a point that is on screen, and nearestWrappedBox slides a destination onto the nearest copy so that travelling from Japan to Hawaii is a short hop east.

Numbered callouts

layoutCallouts(map, request) puts a numbered circle for each region asked for in the open space between and around the land, and gives back where each leader starts and where its circle sits:

const spots = layoutCallouts(map, {
  codes: ["BY", "NW", "SL"],   // the regions, numbered in this order
  box,                         // the window the map is drawn in; default the whole map
  radiusRatio: 0.03,           // the circle's radius as a share of the window's width
  polish: true,                // finish with the slow pass for a printed sheet
  keepOut: { bottom: 200, right: 40 },   // a corner to keep clear, for a credit line
  numbering: "west-to-east",   // or "given", the default
});
// [{ code: "BY", number: 1, start: [x, y], circle: [x, y], radius }, …]

Three things are weighed, in this order: a circle sits in water; no two leaders cross; a leader crosses as little land as it can. A circle goes to the nearest place it fits (the sea off its own coast, the gap between two islands, the empty half of the frame) and not to one of four sides. The numbers are checked against the coastline itself and not the box round it, so an inland sea or a bay is room. Where a frame has less room than it has circles, they close up rather than some going undrawn. A start is a point on the region's own land, not its centre, which for a chain or a crescent is in the sea.

polish: true adds an annealing pass that leaves no two leaders closer than a circle's radius and none through another number, and lets a leader leave its region from the coast nearest its number. It takes a few seconds on a crowded sheet and is seeded, so the same sheet is drawn the same every time.

placeCallouts, calloutSpaces and calloutFaults are the lower levels: the placement over any list of centroids and rings, the places a circle may sit, and the count of crossings and near-misses a sheet is held to.

Which one is this?

import { findQuestion, pickDistractors, seededRandom } from "@johnmorrisdotca/chizu";

pickDistractors(WORLD, "DE", { count: 3 });    // ["LU", "NL", "AT"]: its neighbours first
pickDistractors(WORLD, "JP", { count: 3 });    // ["KP", "KR", "TW"]: nothing touches Japan, so whatever is nearest
findQuestion(WORLD, "FR", seededRandom(7));    // the target and its choices in an order the seed fixes

A wrong answer is scored 100 for a land neighbour, 60 for sharing a group and up to 40 for being close (distractorScore), so the choices are places a person could take it for. With a random stream the best few are shuffled and cut so the same country is not asked with the same company every time; without one the answer is simply the best count. among limits the places that may be offered.

Continents and other groups

A group of places is a list of codes, and four functions show any of them: a continent, a UN M49 subregion, the eight regions of Japan, Canada's five, the four Census regions of the United States, or a list a page names itself (the G7, the countries a class has studied). groupMap cuts a map down to the group, so a quiz asks African look-alikes for an African country and callouts number only the group; groupBox frames it, each member on its mainland, so France's overseas departments do not stretch Europe's window to South America; groupTones fades the rest of the map round it.

import WORLD from "@johnmorrisdotca/chizu/world";
import { CHIZU_CONTINENTS } from "@johnmorrisdotca/chizu/names";
import { drawChizu } from "@johnmorrisdotca/chizu/draw";
import { findQuestion, groupBox, groupMap, groupTones, layoutCallouts, seededRandom } from "@johnmorrisdotca/chizu";

const africa = CHIZU_CONTINENTS.find((continent) => continent.code === "AF")!;
const box = groupBox(WORLD, africa.codes, 4 / 3);
const svg = drawChizu(WORLD, { box, tones: groupTones(WORLD, africa.codes), callouts: ["EG", "KE", "NG", "ZA"] });
const question = findQuestion(groupMap(WORLD, africa.codes), "KE", seededRandom(1))!;
console.log(africa.nameJa, svg.length > 0, question.choices.every((code) => africa.codes.includes(code)));

アフリカ true true

The continents (CHIZU_CONTINENTS in /names) are kuni's seven, from UN M49 by way of CLDR: Africa, Antarctica, Asia, Europe, North America (with Central America and the Caribbean), Oceania and South America, each with its English and Japanese names, its reading and its countries. Every one of the 238 countries is in exactly one; Antarctica, like the French Southern Lands, is not drawn, and holds none. A country's group is its continent's English name and groupJa its Japanese. The subregions (CHIZU_SUBREGIONS) are the twenty-two of UN M49 (Eastern Asia, Western Europe, the Caribbean…), kuni's too. A map's own groups are regionGroups(map): the continents on the world, the eight regions on Japan's prefectures (北海道地方 to 九州地方, Okinawa in Kyushu), Canada's Atlantic, Central, Prairies, West Coast and North, and the Census regions of the United States, each named in English and Japanese. Named groupings beyond these (the EU, ASEAN, the G7) are kuni's to keep, with their dates and sources; until it has one, pass its codes.

Pasted names

placesFromText(text, map.regions) is shown under Examples. Case and surrounding space never matter, a name may be English, Japanese, the short Japanese or the reading, and a line that matches nothing is said back and never guessed at: "Tokyo" does not quietly become Tochigi. optionalEnding lets a pasted prefecture leave off its 県 or 府 (/[県府都道]$/u). countriesFromText does the same over the table of every country.

Longitude and latitude

projectPoint(WORLD, 139.69, 35.69) is Tokyo on the world's canvas, [457.5, 212.5], and unprojectPoint goes back. A map keeps how its canvas was made (projection). Two are closed formulas, done here with no dependency: Miller's cylindrical round a centre longitude (the world) and Lambert azimuthal equal-area round a centre (a country alone). A country's regions were fitted with a projection of their own, and projectPoint answers null for them, never a guess. The tests hold both formulas to d3-geo's own.

Drawing a map

import { drawChizu } from "@johnmorrisdotca/chizu/draw";

drawChizu(map, {
  box,                                      // a window; default the whole map
  language: "ja",                           // names for a screen reader and the labels
  tones: { BY: "selected", NW: "correct" }, // selected, correct, wrong, hint, muted, faint, or any name x for the class cz-tone-x
  colors: { BY: "#2f6b4f", NW: "teal" },    // a fill of your own for a region; docs/colours.md
  callouts: ["BY", "NW", "SL"],             // or a full request, as layoutCallouts takes it
  labels: true,                             // names on the land, where they fit; or a list of codes
  interactive: true,                        // every region a thing to press
  style: true,                              // carry CHIZU_STYLE inside, so the drawing stands alone as an image
});

It is a string, so it works on a server, in a build step, in an email or in innerHTML. Each region is a <g class="cz-region" data-code="…"> with a <title> and a <path class="cz-land"> for each piece, and a window that overhangs the world's seam draws the land again on the far side.

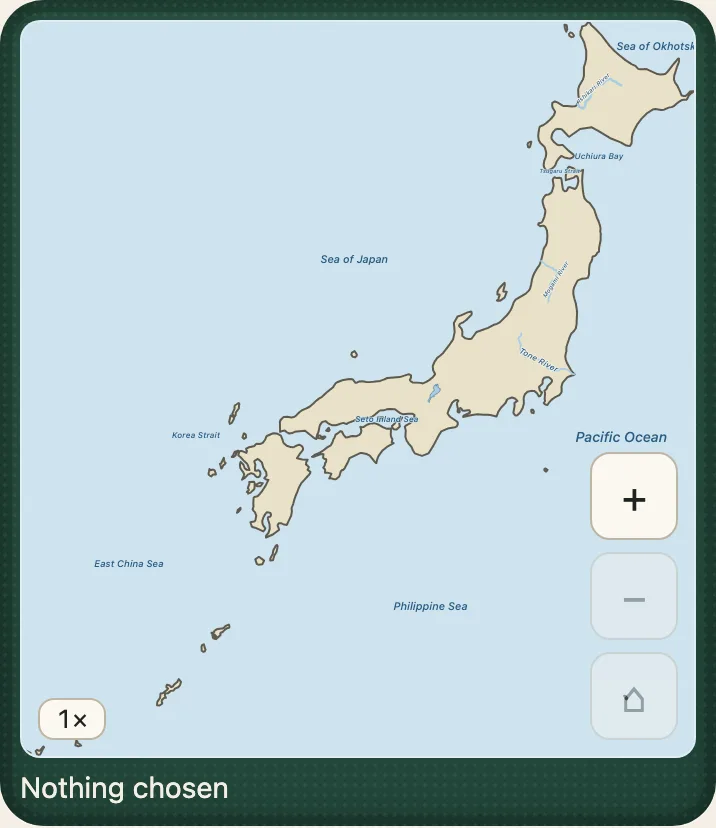

Playing with a map in a page

import { mountChizu } from "@johnmorrisdotca/chizu/mount";

const mount = mountChizu(element, { map, language: "ja", onSelect: (code) => …, onView: (view) => … });
mount.select("BY");   // choose a region and zoom to it
mount.show(["BY", "BW"]);   // look at these
mount.set({ tones: { BY: "correct" }, callouts: ["BY", "NW"] });
mount.setMap(otherMap);
mount.zoomBy(1);
mount.reset();
mount.destroy();

Input	What it does
Drag	moves the map; a drag past the edge stops at it (not on the world, which goes round)
The +, − and ⌂ buttons	zoom in and out in ten steps, and back to the whole map
Ctrl or ⌘ and the wheel, or a pinch	zoom a step about the pointer. The wheel alone scrolls the page
A press	chooses a region (and a second press on it, none)
Arrow keys, +, -, 0	move, zoom, and show the whole map, with the map focused

selectable: false makes the map only looked at, which a quiz wants. Callouts are placed again for the window as it is after each move, and keep out from under the buttons.

API

The API reference lists every export of every entry point with its signature and its doc comment. It is made from the source by pnpm site, so it cannot fall behind the code.

Entry	What it holds
@johnmorrisdotca/chizu	The engine: wholeMapBox, zoomBox, focusBox, regionBox, zoomToFit, shapeGlyphBox, MAP_ZOOM_LEVELS; insetFor, insetTransform; wrapOffsets, wrapIntoBox; mapOutlines, parseMapRings, landAnchor, pointInRing; layoutCallouts, placeCallouts, calloutFaults; findQuestion, pickDistractors, distractorScore; placesFromText; featureMap, featuresShown, findFeatures, featureKindName, featureKindOf; projectPoint, unprojectPoint; nameOf, chizuSay, CHIZU_STRINGS; seededRandom, shuffled; VERSION
@johnmorrisdotca/chizu/draw	drawChizu, CHIZU_STYLE
@johnmorrisdotca/chizu/mount	mountChizu, ensureChizuMapStyle, CHIZU_MAP_STYLE
@johnmorrisdotca/chizu/names	CHIZU_COUNTRIES, CHIZU_SOURCE, countryByCode, countriesFromText
@johnmorrisdotca/chizu/load	loadCountry, loadDivisions, loadFeatures, loadWorldDetail, COUNTRY_CODES, DIVISIONS_CODES, FEATURE_MAPS
@johnmorrisdotca/chizu/world	the world, as the default export and as WORLD
@johnmorrisdotca/chizu/countries/<code>	one country alone, as the default export
@johnmorrisdotca/chizu/divisions/<code>	one country's regions, as the default export
@johnmorrisdotca/chizu/features/<map>	one map's seas, lakes, rivers, landforms, peaks and capitals (world, divisions-jp), as the default export

Every function is pure: it returns new values and never changes what it was given.

Theming

Nothing here is branded. The drawing and the mounted map are coloured by custom properties, and a page sets only the ones it wants different. They follow the device's light or dark setting; data-theme="light" or "dark" on <html> forces one.

The drawing (drawChizu), custom properties on .chizu:

Property	What it colours	Light	Dark
--cz-sea	the sea	#cfe3ee	#18303d
--cz-land	land	#e9e1c8	#4a4a3d
--cz-line	a border	#5d5a50	#aaa592
--cz-inset	the dashed frame of an inset	#7a766a	#8f8b7a
--cz-ink	a printed name	#1f2320	#ece8dc
--cz-selected	the tone selected	#ffd23f	#a8841a
--cz-correct	the tone correct	#9bd6a8	#2f6b45
--cz-wrong	the tone wrong	#f0a99b	#8a3a2c
--cz-hint	the tone hint	#b7dcf4	#2d5a78
--cz-muted	the tone muted	#d9d5c6	#3a3a30
--cz-faint	the tone faint	#f3efe4	#55554a
--cz-callout	a callout's circle	#ffffff	#ece8dc
--cz-callout-ink	a callout's number	#1f2320	the same
--cz-leader	a leader line and its dot	#3a3d38	#ece8dc
--cz-halo	the halo round a printed name	#f7f3e8	#1d201e
--cz-marine	a sea, under the land	#cfe3ee	#18303d
--cz-water	a lake and a river	#a6cde6	#2f6283
--cz-water-ink	the name of water	#2b5d84	#9fcbe8
--cz-feature-line	a landform's name and outline, a peak	#6b5d45	#cdbd97
--cz-feature-selected	a chosen feature	#4f9bd6	#3f8cc6
--cz-font	the font of names and numbers	the system's, with Hiragino and Noto Sans JP for Japanese	the same

The mounted map (mountChizu), custom properties on .chizu-map:

Property	What it colours	Light	Dark
--czm-ink	the buttons' ink and the line of words	#1f2320	#ece8dc
--czm-surface	the buttons	#fbf8f1	#1d201e
--czm-rule	the frame and the buttons' outline	#bdb6a4	#4a4d46
--czm-accent	the focus ring	#b5452c	#ff8a6b

The parts of the drawing carry classes (cz-region, cz-land, cz-sea, cz-inset, cz-label, cz-callout, cz-leader, cz-callout-circle, cz-callout-number, cz-tone-<name>) for anything a property cannot reach. The demo's own page is the worked example: its green felt and cloth patches are the family's stylesheet, demo/family.css, the same file byte for byte in every sibling's demo, and a test holds it to its hash.

Limits

All of these are held by tests, and the ones with a name are exported.

Limit	Value	Where
Zoom	ten steps, 1× to 10×	MAP_ZOOM_LEVELS
The world	173 countries on a canvas 1,000 wide and 489 tall	WORLD
Countries alone	238, on a canvas whose longer side is 1,000	CHIZU_COUNTRIES
Countries with regions	32	DIVISIONS_CODES
A callout's circle	3% of the window's width unless asked otherwise	CALLOUT_RADIUS_RATIO
Callouts that cross	none, for the maps and lists the tests place, polished or not	calloutFaults
Wrong answers	3 unless asked otherwise, drawn from the best count + 3	pickDistractors
Window copies drawn on the world	at most 4, however wrong the window	wrapOffsets

Placing callouts takes about 70 ms for twenty countries on the world, about 90 ms for the sixteen states of Germany and about 240 ms for the 96 départements of France (measured on a laptop); polish: true adds between a third of a second and a few seconds for a crowded sheet. Nothing here runs on a timer, and a mounted map draws only when it is moved, zoomed or told something new.

Accessibility

• A screen reader hears the map. The mounted map is a focusable stage with the name "Map of Japan" (in Japanese, 日本の地図) and a description of its keys. A polite line under it says what is chosen ("Japan chosen") or "Nothing chosen", so a change is spoken without moving focus. The zoom buttons are real buttons labelled "Zoom in", "Zoom out" and "Show the whole map", and a button that cannot do anything now is disabled.
• The drawing says what it is. drawChizu makes an svg with role="img" and an aria-label naming the map; each region carries a <title> with its name. With interactive: true the drawing is a role="group" and every region a role="button" with its name as its label, for a page to hand focus to.
• The keyboard moves and zooms the map. Tab reaches the map, the arrow keys move it by 12 percent of the window, + and - zoom (= and _ too) and 0 shows the whole map; the focus ring is three pixels in the accent colour. The zoom buttons are reached with Tab and pressed with Enter or Space.
• Touch targets. The zoom buttons are 44 by 44 pixels. A drag on the map moves the map and not the page (touch-action: none on the stage only); the wheel alone scrolls the page, and only Ctrl or ⌘ with the wheel, or a pinch, zooms.
• Reduced motion. Nothing in the package animates, so there is nothing for prefers-reduced-motion to change.
• Colour. Land, sea and the six tones follow the device's light or dark setting. A tone (correct, wrong, selected) is a fill colour and a data-tone attribute and nothing more, so a page that marks an answer right or wrong says so in words as well, as the demo's quiz does. The colour pairs in Theming have not been measured against WCAG contrast ratios.
• Not yet: choosing a place from the keyboard inside the map. A press chooses a region; the arrow keys do not move between regions, and the regions in a mounted map are not in the tab order. A page that needs it offers its own list that calls mount.select(code): the demo's table of names does, with each row focusable and chosen with Enter.
• Not yet: Japanese read by a native reader. The words are listed beside their English in docs/strings-ja.md (see Languages).

Browser and runtime support

Any browser with ES2020 modules, pointer events and CSS aspect-ratio: Chrome and Edge 88, Safari 15, Firefox 89, all from 2021 on. The mounted map draws in the page's own DOM, with no shadow DOM and no CSS the page cannot reach. The demo is played in a real Chromium at a phone's width (with touch) and a desk's, and in WebKit, Safari's engine, at a phone's width; Firefox is not in that run. The package itself (everything but the page) needs no DOM: it runs in Node 22 or later (CI tests 22 and 24). Deno and Bun are not tested.

Languages

English and Japanese: the names of every country, of nearly every region and of most seas, lakes and rivers (Natural Earth's, else Wikidata's: docs/features.md) (kuni's, from Unicode CLDR and Wikidata, and Natural Earth's, from Wikidata), the everyday short name where it is not the formal one (アメリカ), the reading in kana of every country and every prefecture, the words of the drawing and the mounted map (CHIZU_STRINGS), and the demo. Japanese: included; not yet reviewed by a native reader. Corrections welcome. The readings are kuni's, but for the three places kuni does not have, whose readings are hand-written, 3 of them (KANJI_READINGS in scripts/data-config.mjs); a name in katakana is its own reading. Every string of the board is listed beside its English in docs/strings-ja.md, and there is an issue template for fixing one. Any other language is a table of your own, passed beside these two: Natural Earth carries names in more than twenty.

Roadmap

Not here yet, and each welcome as an issue:

• The outlines as longitude and latitude, an entry of their own, so that another map can be made from them in another projection or cut at another meridian: Tenka cuts its world at the Bering Strait and merges countries into territories, which a canvas that is already projected cannot do.
• Cities: Natural Earth's populated places, projected on each map's canvas, for pinning a town and not only a country.
• More named water: Natural Earth's regional supplements of lakes and rivers, and the bays and rivers it does not draw at 1:10m (Tokyo Bay, the Shinano).
• Readings for the regions outside Japan, when kuni has them.
• A US-style composite (Albers USA) as an alternative to the two boxes.
• A tag (<chizu-map>) beside mountChizu, as the other packages of the family have.

Left out on purpose: population, area, mottos and "famous for" facts. They are claims, and a map should not make them without a source for each; where kuni carries one with its source, Chizu reads it at build time rather than keeping a copy of its own.

Architecture

The engine is plain functions over plain data with no DOM and no dependency. The maps are generated: scripts/build-data.mjs reads nine Natural Earth files at a pinned release, the names, ISO codes and capitals from kuni 国 at a pinned version, and the features' other names from Wikidata as scripts/wikidata.mjs last asked, and writes every file under src/data/, and pnpm data twice leaves the tree unchanged. Each entry point is a file of its own, so a server that frames and numbers a map never loads the drawing, and a page that draws one country never loads another. Tests sit beside the code they test (*.test.ts). scripts/ builds the data, the demo and its API reference page, takes the README's pictures and checks the package as npm packs it; demo/ is the playable page, and e2e/ its browser tests.

src/
├── index.ts            the engine's entry
├── draw-entry.ts       the drawing's entry
├── mount-entry.ts      the page's entry
├── names-entry.ts      the table of countries' entry
├── load-entry.ts       loadCountry and loadDivisions
├── world-entry.ts      the world's entry
├── types.ts            ChizuMap, ChizuRegion, MapBox and the rest
├── frame.ts            windows, zoom steps, fits
├── insets.ts           regions drawn in boxes of their own
├── wrap.ts             the world that goes round
├── outlines.ts         paths as rings, land under a point, a point on a region's land
├── handles.ts          numbers beside regions, and in order across the map
├── callouts.ts         numbered circles in open water
├── calloutSpace.ts     where a circle may sit
├── calloutPolish.ts    the slow pass for a printed sheet
├── layout.ts           layoutCallouts over a whole map
├── distractors.ts      the wrong answers
├── quiz.ts             a question and its choices
├── groups.ts           continents and other groups: cut, framed, toned
├── features.ts         seas, lakes, rivers and the rest: chosen, searched, made a map
├── fromText.ts         pasted names to places
├── countries.ts        the table of countries, looked up
├── project.ts          longitude and latitude on a canvas
├── strings.ts          the words, in English and Japanese
├── style.ts            the drawing's colours
├── draw.ts             a map as SVG text
├── drawFeatures.ts     the features in a drawing, and their names
├── mount.ts            a map in a page
├── mountStyle.ts       the page's colours
├── random.ts           the seeded stream
├── version.ts          the version
└── data/               generated, never edited
    ├── world.ts            the world
    ├── world-detail.ts     the world drawn finer, for a map zoomed in
    ├── countries.ts        the table of every country
    ├── loaders.ts          one import for each country's map
    ├── countries/<code>.ts   238 countries, each alone
    ├── divisions/<code>.ts   32 countries' regions
    └── features/<map>.ts     268 maps' named features

The name

Chizu (地図) is Japanese for "map": the everyday word, read ちず, as in 世界地図 (sekai chizu), a map of the world. It is written with 地, "ground", and 図, "diagram", and said in two beats, chi-zu. A map here is what it is in the word: a picture of the ground. (Wiktionary: 地図, which gives ちず as "map".)

Where it comes from, and where it is used

Chizu was built for Itsutsu, a site for board games, puzzles, card games and dice games played at your own pace, and for UmaKuma, a Japanese study app by the same author, where the map engine began as a way to learn the prefectures and the countries of the world and to print sheets with numbered maps on them. Both import it, which makes it the family's first package with two homes. Itsutsu (五つ) is Japanese for "five", after five in a row, the game the site began with. Tenka, the family's world-conquest game, draws a world of its own, built from the same Natural Earth file by its own script, and shares its source with this package.

Used by

• Itsutsu, for its geography.
• UmaKuma, a Japanese study app by the same author, for its map sheets and its which-prefecture and which-country questions.
• REST in Pieces, a fake-data REST service, draws /maps/{code}.svg with Chizu: any country or region outlined, coloured and with its capital, when Chizu is installed beside it.

Using Chizu in something? Open an Add my project issue and we will add you.

The family

Chizu is one of twenty-four packages, each made for the same site, each at github.com/johnmorrisdotca. The code of every one is MIT.

• Korokoro (コロコロ): dice, with notation, exact odds, real sounds and the dice of many games. Demo.
• Kyuubu (キューブ): a turning cube for the browser, 2×2 to 7×7, with record solves to replay. Demo.
• Hitotsu (一つ): a colour-card shedding game for two to eight, with the house rules people play. Demo.
• Toranpu (トランプ): a deck of playing cards, card games with computer players, and solitaires. Demo.
• Tane (種): seeded random numbers and daily seeds, the same in every browser and on every server. Demo.
• Narabe (並べ): one rules engine for abstract board games, from gomoku and Reversi to Go and checkers. Demo.
• Tenka (天下): world conquest for two to six, on a map of the real world. Demo.
• Kumimoji (組み文字): a crossword tile race, in English and Japanese kana. Demo.
• Tsunagi (繋ぎ): a line-joining logic puzzle whose every level has exactly one answer. Demo.
• Jarajara (ジャラジャラ): mahjong tiles drawn as SVG, stacked layouts, and the matching solitaire Awase. Demo.
• Suido (水道): a pipe puzzle: turn the pieces until the water reaches every drain. Demo.
• Domino (ドミノ): dominoes and Mexican Train. Demo.
• Kotoba (言葉): word lists and word-game rules in English, French, German and Japanese. Demo.
• Sugoroku (双六): backgammon and its variants, with the doubling cube and match play. Demo.
• Kazu (数): grid number puzzles: Sudoku and its variants, Futoshiki and Skyscrapers. Demo.
• Meikyuu (迷宮): mazes on squares, hexagons, triangles and circles, made from a seed and drawn through with a finger or the mouse. Demo.
• Hikidashi (引き出し): a drawer of small Japanese text tools: era dates, kanji numerals, readings and sentence difficulty. Demo.
• Chizu (地図): maps of the world and of countries' regions, in English and Japanese, with a quiz and callouts. Demo.
• Bushu (部首): find a kanji by the parts it is made of. Demo.
• Tobiishi (飛び石): peg solitaire with nine boards and seeded solvable challenges. Demo.
• Jirai (地雷): minesweeper on shaped grids with verified no-guess boards. Demo.
• Gunjin (軍人): five hidden-rank strategy games with pass-the-device play. Demo.
• Karakuri (からくり): eight hyper-casual puzzle games, some of them physics: draw a shield, pull pins, cut ropes, slide blocks, pour tubes. Demo.
• Houseki (宝石): gem and stone matching puzzles: falling triplets, stone collapse, colour chains and gem swap. Demo.

This package is Chizu. The demos of all twenty-four share one header and footer, so each links the rest.

Development

pnpm install
pnpm check          # lint, types and every test
pnpm data           # make src/data again from Natural Earth (downloads once into .cache/)
pnpm test:package   # pack, install and import it as somebody who installed it would
pnpm test:demo      # build the demo and play it in a real browser, at a phone's width and a desk's
pnpm site           # build the demo into site/, as the Pages workflow publishes it
pnpm screenshots:readme   # take the README's pictures from the built demo, in light and dark
pnpm test:readme    # run every example in the README against the built package

Contributing

See CONTRIBUTING.md. The commands are under Development.

Please follow the code of conduct. A way to make the callout placer or a parse of pasted names run for a very long time, or markup that gets out of the drawing, is for the security policy, not a public issue.

Changes

See CHANGELOG.md. The latest release, 1.4.0, labels a seat on Japan's map 県庁所在地 and draws Alaska's and Hawaii's capitals inside their insets.

Licence

The code is MIT © John Morris. The outlines and the names are data from other people, under their own terms, written out in full in NOTICE.md (shipped in the package):

Data	Made from	Terms
The outlines of the world, of each country and of 32 countries' regions; the seas, lakes, rivers, landforms and peaks	Natural Earth 5.1.2, admin-0 countries at 1:110m, 1:50m and 1:10m, admin-1 states and provinces and the physical vectors at 1:10m	Public domain. Crediting the authors is unnecessary; it is done here anyway
The countries' names, short names, readings and continents; the regions' ISO 3166-2 codes; the names of Japan's prefectures and of the regions that are one ISO subdivision	kuni 国 1.1.0, read at build time, whose names are Unicode CLDR's and Wikidata's	kuni: MIT. CLDR: Unicode-3.0, whose notice is in NOTICE.md. Wikidata: CC0
The other regions' names in Japanese; the features' names	Natural Earth's names, which are Wikidata's, and Wikidata's	CC0
The readings of three places kuni does not have, and the names that tell two regions of one map apart	Written for this package	MIT

Natural Earth is made by volunteers and supported by the North American Cartographic Information Society; their work is why a map like this can be free. Thank you.
